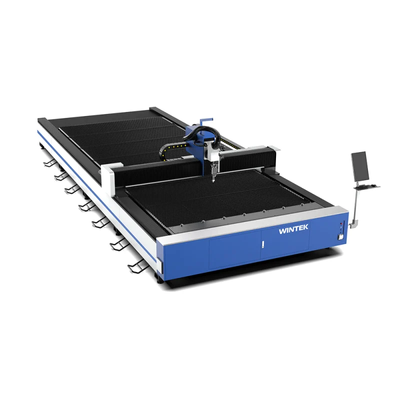

Wintek - Model 6020 -Laser Metal Cutting Machine​

Equipped with a dedicated five-axis laser processing intelligent control system, it effortlessly achieves various bevel types such as V, Y, X, and K with cutting angles up to ±45°. The zero-gap cutting design significantly reduces welding difficulty and cost, streamlines processes, and enhances sheet metal processing efficiency.

Featuring a renowned brand fiber laser, it ensures excellent beam quality, minimal thermal deformation, and smooth, aesthetically pleasing cuts. The seamless cutting process eliminates the need for secondary processing, enabling workpieces to be directly used for welding, reducing production steps, manufacturing costs, and labor expenses while greatly improving overall production efficiency.

High-precision servo control and reducer coordination ensure the cutting head’s motion accuracy, minimizing bevel angle errors for processed parts. This makes it ideal for large-scale, high-precision bevel component production with stable and reliable quality.

With kilowatt-level laser power and multi-axis linkage technology, it handles bevel cutting of metal plates up to 60mm thick effortlessly, broadening processing capabilities and enhancing production efficiency and flexibility.

1. Bevel Cutting Precision: Achieves up to 45° angle cuts with high accuracy.
2. Power Range: Available in 6KW-30KW, catering to various cutting needs.
3. Efficiency: Fast cutting speed with minimal material distortion.
4. Versatility: Suitable for diverse metals and complex designs.

• Laser Power: 6KW-30KW
• Laser Wave Length: 1064nm
• Position Accuracy: 0.03 mm/m
• Repeatability Accuracy: 0.02 mm/m
• Acceleration: 0.8G-1.5G
• Cutting Speed: 80-140 m/min
• Interface: USB, RJ45
• Working Voltage: 380v, 3phase, 50hz/60hz (customized)
• Auxiliary Gas: oxygen, nitrogen, compressed air
• Work Environment: 0-45°C, Moisture 45-85%
• Machine Size / Packing Size: 8000×2700×1950mm / 8100×2800×2300mm
