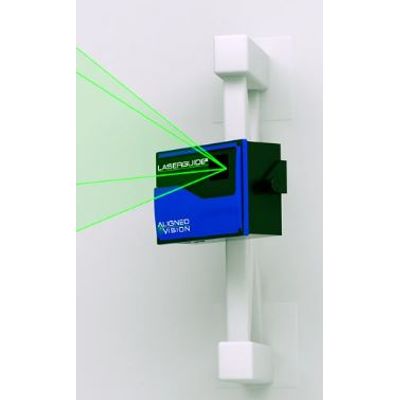

Aligned Vision - Model LASERGUIDE 2 -Laser Projection System
FromAligned Vision
Imports bills of materials (BOM) & bills of process (BOP). Delivers 3d projections. Enables fastest builds.
- AutoAlign – automatic target registration.
- Accuracy
- Lowest flicker in the industry.
- Multitask projects with up to four jobs per projector, keeping multiple teams working.
- The safest, brightest laser. The first CDRH Class II / IEC Class 2 laser in the industry.
- Industry-leading reliability keeps operators adding value instead of fixing projectors.
- Size : 16″ x 11″ x 7″ / 40 x 28 x 18 cm
- Weight : 22 lb / 10 kg
- Beam Color : Green (532 nm)
- Laser Line Width : 0.020″– 0.075″ / 0.5 mm–2 mm
- Projection Angle : 60° (± 30°)
- Accuracy : ± 0.01″ / .025 mm
- Distance : Projection range 3–50/ 1m–15m
- Autofocus : Sharp lines at every distance
- Certified : Boeing qualified at 50/ 15m
