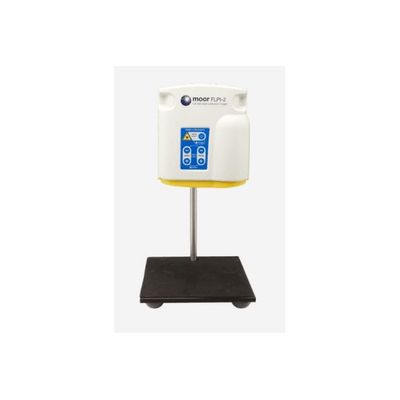

Moor Instruments - Model moorFLPI-2 -Laser Speckle Contrast Imager

Capture every detail with a new unique laser/ single USB camera package. The key specs that matter: pixel resolution of just 3.9 microns (6.6Mpixels/cm²), image sizes ranging from just 6mm x 8mm right up to 225mm x 300mm, using a unique 10x optical zoom function all at up to 100 frames per second…

moorFLPI2 features an ergonomically designed scan head and highly refined software package which promotes a smooth workflow and enables the high through-put required to scan cohorts quickly and accurately. Advanced analysis functions help you to draw sound conclusions from your blood flow images.

moorFLPI-2 highlights include;

• Image any exposed tissue (skin or surgically exposed tissues) and species.
• Easy to use, single USB connection, flexible and simple setup helps get you up and running quickly.
• Three measurement modes with flexible sampling rates (spatial, temporal and sliding window algorithms) to optimise your data for frame rate, spatial resolution and file size.
• Best spatial resolution of 3.9 microns per pixel (6.6Mpixels/cm²).
• Real-time video frames rates – up to 100 frames per second at full field (no windowing).
• Image areas range from 6mm x 8mm to 225mm x 300mm with a unique, motorised 10x optical zoom and auto focus.
• Colour photo and blood flow images provided by a unique single USB3 camera, RGB illumination system. Blood flow and photo images precisely matched.
• Compact design with flexible stand options for laboratory or clinic use.
• Unique protocol control – automation of pressure cuff, tissue heating and iontophoresis protocols with automated reporting, eases workflow and improves accuracy.
• CE marking. Well established in the clinical and research communities for best performance and quality.
• Laser stability hardware for the ultimate in reliable and consistent measurement over minutes, hours and days.

• MEASUREMENT PRINCIPLE :Laser speckle contrast analysis (also known as LASCA).
• LASER SAFETY CLASSIFICATION : Class 1 per IEC 60825-1:2014 – Safe to use without eye protection.
• CALIBRATION : Factory Calibrated
• IMAGE SIZE : from 5.6mm x 7.5mm up to 225mm x 300mm (continuously variable with zoom lens).
• CAMERA/IMAGE RESOLUTION : 2064 x 1544 maximum.
• IMAGE ACQUISITION RATE :100 images per second to 1 image every 12 hours.
• ACQUISITION MODES : Single Point (16 channel), Single Image and Video mode.
• OPTICAL DESIGN : Motorised 10 x optical zoom and auto focus. Single camera / RGB illumination to match colour photo and blood ? ow images.
• MEASUREMENT ALGORITHMS : Temporal and Spatial processing (including fixed and sliding window algorithms).
• PIXEL RESOLUTION : Highest resolution of 6,600,000 pixels per cm².
• SOFTWARE : Re?ned over 20 years according to customer demands including advanced image acquisition, processing, editing, functionality and analysis.
• STAND OPTIONS :  Scan head has standard VESA mount for desktop stand, Microstand and Clinical Mobile stand. Photographic fitting for use with tripods, etc.
• PC CONNECTIONS : 1 x USB 3.0 port.
• EXTERNAL CONNECTIONS : Programmable trigger in / out function with BNC connections.
• WARRANTY : 2 years, parts & labour, enhanced service contracts available.
• WEIGHTS/ DIMENSIONS : Scan head 23cm x 12cm x 25cm, Scan head 2.3kg.
• POWER SUPPLY : Universal Voltage, 100V-230V. Note acquisition rate is unaffected by frequency of local electrical supply.
