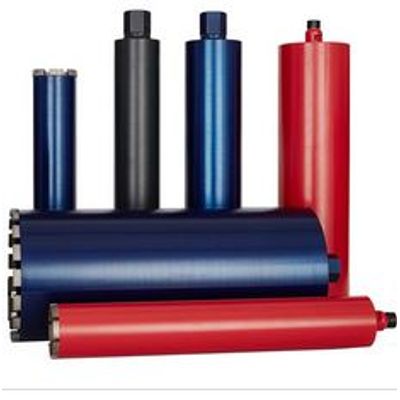

Bycon - Laser Welded Diamond Core Drill Bit
BYCON wet diamond core bit is our speciality for professional concrete drilling market. With super grade and our "Shark" appearance segment has patent. Common arbor size is 1 1/4`` -7 UNC, 450mm working length. We also can do core bits according to customers` requirements.
Most popular related searches
Testing Technical:
- Drill motor: WEKA DK32
- Core bit: φ102mmx450mmx9T
- Segment size: 24x3.5x10mm
- Concrete number: C50
- Rebar: φ25mmx4-layer
Testing Result:
- Blue Wind Series: faster speed and good life
- Speed to drill a hole: 6`50`` ~ 7`20`` in average
- Lifetime: Total 14 holes, around 6.3 meter
- Tornado Series: longer life and good speed
- Speed to drill a hole: 7`50`` ~ 8`20`` in average
- Lifetime: Total 44 holes, around 19.8 meters
- Chetak Series: good overall performance
- Speed to drill a hole: 7`20`` ~ 7`50`` in average
- Lifetime: Total 27 holes, around 12.1 meters
