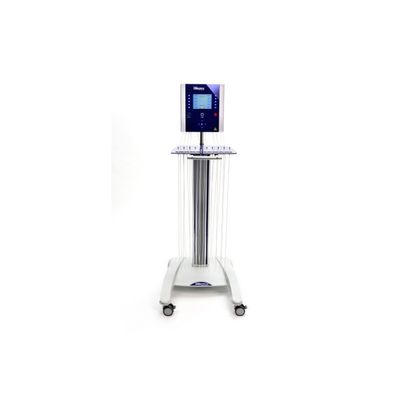

LASERNEEDLE - Touch Allround Device
FromLaserneedle GmbH
The LASERNEEDLE Touch Allround comes with 4 red, 4 infrared, and 2 violet laser channels. The infrared laser has a greater penetration depth than the red laser and thus reaches deeper tissue layers. The violet laser has an antibacterial effect and destroys even multiresistant bacteria. The specific configuration of wavelengths is suitable for a wide range of treatments.
Most popular related searches
- Glass front with touchscreen
- Color display for visualization and adjustment of treatment parameters
- Individual control of each laser channel
- Storage space for 20 treatment protocols
- Multilingual intuitive interface (German, English, Portuguese, French)
- Non-wearing and easy to clean materials (glass surface)
- Own development, production, maintenance and service
- LASERNEEDLE Touch Allround with 4 red, 4 infrared, and 2 violet laser channels
- 4 synthetical optical fibers and 6 quartz optical fibers (infrared and violet channels)
- 20 silicon applicators
- Pack of perforated plaster (3 rolls)
- 20 self adhesive applicators
- 2 laser protection goggles
- Sample of LASERNEEDLE marketing materials
Laser classification:
- Class 3R
Number of laser channels (total of 10):
- 4 laser channels red = 658 nm
- 4 laser channels infrared = 808 nm
- 2 laser channels violet = 405 nm
Optical fibers:
- 4 regular optical fibers, length 2,1m (for red channels)
- 6 quarz optical fibers, length 2,1m (for infrared and violet channels)
Optical power (per channel):
- max 40mW
Laser power adjustment:
- 5% steps
Operation modes:
- continuous mode (cw mode)
- modulation (frequency mode)
Modulation frequency:
- 0 – 10.000 Hz; 1 Hz resolution
Internal memory:
- 20 custom treatment protocols
Power supply:
- 100-240 V AC/ 50-60 Hz
