Lauritzen Inc.

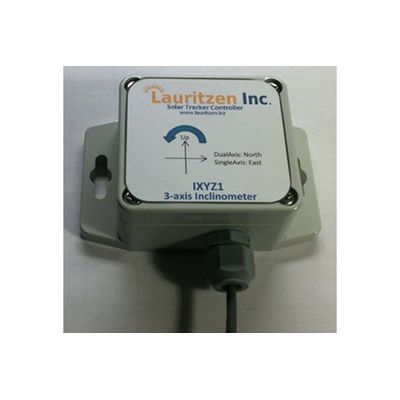

LauritzenModel IXYZ1 -Digital 3-Axis Inclinometer

SHARE

The IXYZ inclinometer is designed specifically for the solar industry, but could also be used in other applications. The IXYZ is a 3-dimensional inclinometer which is based on MEMS (Micro Electromechanical System) technology. It features a robust data protocol, voltage supply, and daisy chain feature when operating multiple inclinometers. It can withstand a wide temperature and voltage supply range.

Most popular related searches
  • RS232 interface, daisy chain capable
  • Low latency protocol when daisy chained.
  • Data compression, and error reporting with CRC16 data check
  • Automatic axis resolution reported as pitch and roll.
  • Integrated voltage polarity protection
  • IP65 rated enclosure, outdoor rating.
  • Wide operating temperature range
  • Accurate to within +/- 0.1-degree, angle reported in resolution of 0.01 degree.
