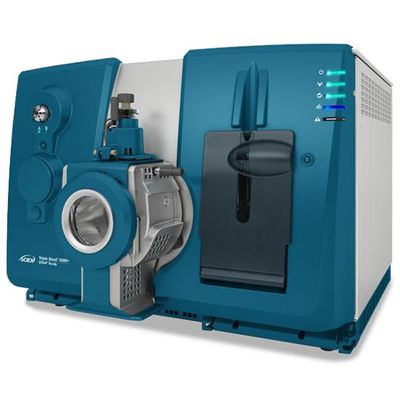

Sciex Triple Quad QTRAP - Model 5500+ -LC-MS/MS Mass Spectrometry System

QTRAP ready
Activating your license through a quick and easy process opens up your SCIEX Triple Quad to a world of possibilities with MS/MS confirmation, enhanced selectivity with MRM3, and other valuable scan types.

Turbo V ion source
Extraordinary robustness and superior performance across a wide range of compounds.

OptiFlow Turbo V ion source
Upgrade to the OptiFlow source for low-flow analysis. It is robust and simple to operate, with a flow-rate range of 1 -200 µL/min.

HED detector and high capacity CEM
Increased productivity with fast polarity switching of 5 msec enabling up to 6 orders of magnitude of linear dynamic range.

Scheduled MRM Pro algorithm
With Analyst software, maximize the number of MRM transitions to analyze more compounds in a single run without sacrificing precision.

SCIEX OS-MQ software
Increased MS quantification productivity with streamlined data processing*

*Upgrade to SCIEX OS-MQ software to advance your data processing capabilities with additional qualitative analysis and processing functionality.

Mass range
A range of 5 to 1250 m/z encompasses many compound classes, enabling your organization to test for more analytes and explore your laboratory’s potential

Polarity switching time
A switching time of 5 msec in MRM and Scheduled MRM (sMRM) mode increases efficiency, by performing positive and negative ion analysis in the same acquisition, without compromising sensitivity

Dynamic range
A dynamic range of up to six orders of magnitude encompasses analyte concentrations from low-level trace detection to those in high abundance

Detector type
A high-energy dynode and multichannel electron multiplier provide you with the highest quality data for every sample acquisition

MRM acquisition rate
With an acquisition rate of 500 MRM/sec, even without using Scheduled MRM, the Triple Quad 5500 system can analyze an extensive suite of compound

Scan speed
At a scan speed of 12,000 Da/sec, this system detects the crucial analytes in your sample without missing a thing

Built-in devices
A high-precision syringe pump makes it easier to optimize any new compounds you add to your portfolio of test offerings as your laboratory grows

QTRAP ready
Activate these powerful and versatile scan types.

Regular MRM quantification
With QTRAP technology you will still acquire the same high-quality MRM data for your low-level trace detection workflows.

Added confirmation
The EPI scan is unique to QTRAP technology. Add a spectral fingerprint to the same MRM acquisition for greater confidence in your data.

See through the matrix
MRM3 is an effective scan solution for the quantification of analytes when high background and interferences make standard MRM quantification difficult.

Unrivaled QQQ resolution
This scan is important in the acquisition of accurate molecular weight and to obtain both the value of the charge state and the accurate mass to charge ratio (m/z).

Full scan workflows
This scan type delivers a highly sensitive full scan for the detection of unknown analytes.

Whether for pharmaceutical analysis or food and environmental testing, the SCIEX Triple Quad 5500+ system delivers the high-quality data you need to make decisions.

Regulated bioanalysis
The SCIEX 5500+ system delivers quantitative and qualitative results for a broad range of diverse drug products. It achieves impeccable levels of sensitivity and selectivity and helps to ensure proper dosage, efficacy, and safety.

Water quality testing
Acquire data that meets the low-level trace detection requirements of drinking and wastewater labs. Increase confidence with unrivaled confirmation scans like EPI for spectral library assurance.

Antibiotics in food
Regulations determine the allowed levels of veterinary drugs in food products. These low-level residues are detected easily with MRM workflows. Activate QTRAP functionality to have even more confidence in your results.

Toxins in food
This high-throughput workflow for mycotoxin testing is critical to achieving regulatory compliance. Use a combined MRM and QTRAP library workflow to achieve a new level of confidence in your data.

Pesticides
A variety of complex matrices are involved when testing for pesticides in fruit, vegetables, water, soil and other samples from emerging markets like cannabis. Quantify and confirm large suites of pesticides using these robust workflows.

Accuracy, simplicity, and efficiency
Delivering high-quality, accurate data is one of the primary objectives of any laboratory. Invest in the best software to achieve your data quality goals. The SCIEX 5500+ system is powered by Analyst software for simple acquisition setup and SCIEX OS-MQ software for unrivaled, fast, accurate and efficient data review and processing.

Optimized processing
SCIEX OS-MQ software introduces your laboratory to a new era of data processing. It was developed to increase your laboratory’s productivity while delivering accurate and high-quality results. The software platform focuses on getting your staff started easily so they can master it quickly.

Automatic outlier removal algorithm
The algorithm automatically identifies responses that are outside of the calibration curve parameters. It calculates linear regressions and alerts you to any irregularities.

AutoPeak integration algorithm
Improve your workflow efficiency by delivering consistent integration across samples and batches and reducing the need for manual integration. The AutoPeak Integration Algorithm significantly speeds up your data review.

Compliance
Sample and data integrity are critical when delivering approved results. SCIEX OS-MQ software incorporates electronic audit trails, signatures and the security elements required for compliance with GxP and 21 CFR Part 11 Regulations.

Standard addition
SCIEX OS-MQ software incorporates native standard addition, which allows it to perform those vital calculations alongside your integrated analysis.

Enhanced filtering of results
Filter your data your way. Unique filtering functionality and advanced flag rules make it easier than ever to interpret your data and focus on key results.
