LCJ Capteurs - Model CV3F-AL_M -24V DC Ultrasonic Wind Vane-Anemometer

The CV3F-AL is a 24V DC ultrasonic wind vane-anemometer aimed for all–weather and workboats. This ultrasonic wind sensor is compatible with navigation softwares and any displays equipped with a standard NMEA0183® input.

COMPATIBILITY

NMEA0183® Baud rate 4800

The CV3F version is compatible with many devices installed on all-weather commercial vessels and workboats.
It has been tested with the following systems:

• FURUNO©, RD30, RD33, depth sounders, radars, NavNet, NavNet2, NavNet3…
• GARMIN©, all displays featuring a “wind” page and an NMEA0183® input.
• NKE Topline, TL25, GyroPilote, MultiGraph, NMEA ®input/Topline
• SIMRAD: IS12 MEGA, IS15 Wind, IS15 Expander, SimNet AT10 interface
• Navigation software: Adrena, MaxSea and TimeZéro, OpenCPN, ScanNav, SeaPro, StatMETEO

Please note: the “AL” option (24V DC) can be added to an existing installation by replacing the junction box.

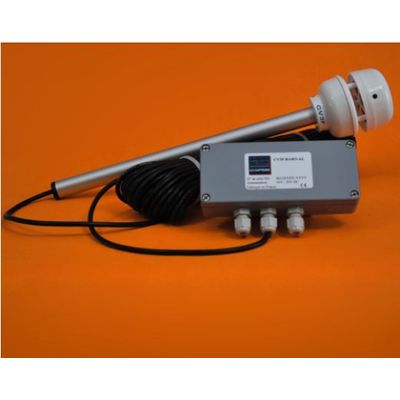

DELIVERY CONTENTS

• CV3F sensor
• 2 stainless steel fixing clamps
• 25 m coaxial cable with connector
• 24V DC junction box for power supply and display unit connection
• User and installation manual
• 2–year warranty with parts and labour in our premises

Cabling:

• Coaxial RG58 cable between the sensor and the junction box.
• Connections on screw terminals in the junction box.
• +24V DC
• 0V
• NMEA0183® + output
• NMEA0183® output
• Coaxial core
• coaxial shield

Measurement range:

• Wind speed: 0.6 to 99 knots
• Wind angle: 0 to 359°
• Temperature: -10°C (without icing) to +50°C

Measurement sensitivity:

• Wind speed: 0.6 knots
• Wind angle: +/-2.5°
• Air temperature: +/- 0.5°C

NMEA0183® sentences:

• IIMWV: wind angle, wind speed and measurement validity, transmission and refresh 2 times per second.
• WIXDR: wind temperature
• PLCJ: manufacturer’s data
• PLCJE: manufacturer’s data
• Transmission speed: Baud rate 4800
