LCJ Capteurs - Model CV7-V_T -Ultrasonic Anemometer and Wind Vane

The CV7-V is a static anemometer sensor speed indicator mounted on a vertical pole. It can be programmed and configured for alignment, responding time, measurement units, and interface format. The setting is saved in an EEPROM non-volatile memory.

Sensor data can be directly processed by a PC or any programmable device with a TTL or RS232 serial port. The transmission protocol is NMEA0183®.

COMPATIBILITY

Connection compatibility of the CV7-V:

• NMEA0183® standard Bd 4800
• FURUNO©, RD30, RD33, depth sounders, radars, NavNet, NavNet2, NavNet3…
• GARMIN©, all devices equipped with a “wind” window and an NMEA0183® input.
• NKE Topline, TL25, GyroPilote, MultiGraph, NMEA ® input/Topline
• SIMRAD: IS15 Wind, IS15 Expendeur, interface SimNet AT10
• Navigation software: Adrena, FT NavVision, MaxSea, Noé, OpenCPN, ScanNav, Seapro, Sodena, StatMETEO.
• NASA, METEOMAN for terrestrial application
• Compatible with all NMEA2000 devices, with our WindyPlug option.
• B&G, FURUNO, GARMIN, HUMMINBIRD, LOWRANCE, RAYMARINE, SIMRAD, etc.

DELIVERY CONTENTS

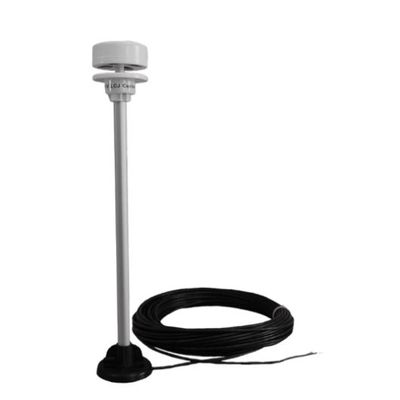

• Anemometer sensor CV7-V with 310 mm vertical stand
• Mounting Bracket
• 25 m cable 4 X 0.22 mm²
• User and installation manual
• 2–year warranty, parts and labour, in our premises

• Cabling:
• 4 wires:
• Red: +12 VDC (9-16 VDC, 12mA)
• Blue: 0V
• Yellow: NMEA0183® output +
• Green: NMEA0183® output
• Measurement range:
• Wind speed: 0.25 to 80 knots
• Wind angle: 0 to 359°
• Temperature: -15°C (without icing) to +55°C

Measurement sensitivity:

• Wind speed: 0.25 knots
• Wind angle: +/-1°
• Air temperature: +/- 1°C

NMEA0183® sentences:

• IIMWV: Angle, Wind speed, Measurement validity
• WIXDR: Air temperature
• PLCJ: manufacturer’s data
• PLCJE: manufacturer’s data
• Transmission speed: Bd 4800
• Complies with the European CE standard

Programmable configurations:

• Angle correction in degrees
• Responding time of speed and direction: 1, 2, 4, 8, 16 s
• Speed unit in knots, m/s, km/h
• Temperature unit in Celsius or Fahrenheit
• NMEA® or specialised interface formats
