LD Rhino - Cable Tool Drill Rig

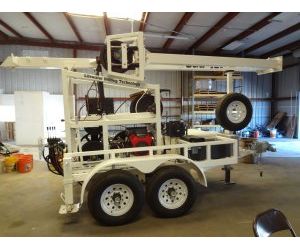

The LD Rhino cable tool drill rig is arguably the most cost-effective rig available today for drilling water wells down to 450 feet. Versatile yet easy to maintain and operate, this rig may be the most economical approach to drilling and constructing water wells where logistics are challenging and fuel and trained personnel are scarce. Originally designed to supply potable water in developing countries, the LD Rhino drilling rig is tough, reliable and flexible enough to make it a good choice for anywhere in the world.- Simple Operation & Maintenance
- Extremely Efficient
- Rugged & Easy To Transport
- Parts Readily Available Worldwide
- Highly Competitive ROI
- Weight Without Stem And Tool: 6,500 Lb
- Trailer Weight Capacity: 15,000 Lb
- Dimensions: 2.82m Long X 2.31m Wide X 2.13 High (111” L X 91” W X 84”H)
- Trailer Brakes: 4 Wheel Hydraulic
- Mast Height: 29 Ft Usable
- Sandline Cable: 500 Ft ?” Diameter
- Mainline Cable: 500 Feet ?” Diameter
- Engine: 21 Horsepower Gasoline Honda Electric Start 18 Amp Charger
- Welder (optional): 150 Amp Arc Welder
- Hydraulic Oil Tank: 30 Gallon Capacity
- Hydraulic Oil Cooler With Electric Fan
- Three Square Jacks Rated At 25,000 Lb Each
- Powder Coat Finish For Long-lasting Durability
- Four Spool Hydraulic Control: Mast, Sandline, Mainline, Walking Beam
- 22 Inch Stroke
- Maximum Hammer Cycle: 58 Strokes Per Minute
- Adjustable Auto Feed For Main Line
- 40 Gallon Water Storage With Pressure Pump
- Two-Piece Drill Stem -- 4.5” Diameter 17 Feet Total Length
- Burns Rope Socket & Swivel
- Choice Of Carbide Button Bit From 3.5" - 10” Diameter
- 10 Foot Bailer
- Wrenches For Changing Bits
- Casing Drivers: Drive Heads & Clamp Styles
- Additional Carbide Tool Drill Bits
- Elevators
- Spears
- Stem Wrenches
- Babbit
- Buttons
- Mandrels
- Cable
- Stems
- Fishing Jars
- Swivels
- Burns Open Side Rope Socket
- Bailer Bottoms And Top Loop
- Subs
- Jars
The LD Rhino is an affordable water well drilling rig that combines proven cable tool technology with today’s reliable hydraulic drive technology to produce a rig that can adapt to all types of geology. The LD Rhino can drill through both rock and unconsolidated formations to a maximum depth of 450 feet or 137 meters. A typical well of 50 meters (approximately 160 feet) requires only about 100 liters or 28 gallons of gasoline and can be completed in a week. Rig operation is quite straightforward and can be quickly learned. And the LD Rhino can be set up and operated by one person.
- One man operation -- Less training, easier to use, cheaper to operate
- Drills unconsolidated formations at rate of 1-3 meters per hour
- Drills through rock at rate of .3-1 meter per hour
- Ships and tows easily, accessible to more locations
- Two rigs fit in standard shipping container
- 75 liter fuel tank - approximately 12 hours of continuous operation
- No air compressor required
- No mud pump required
- 150 liter water storage with pressure pump
- Accommodates bit sizes of 25cm or even larger

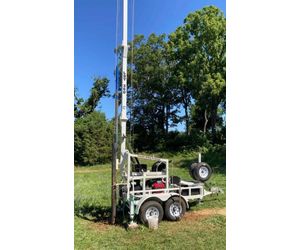

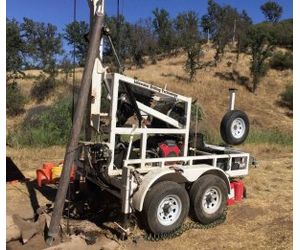

The rig was designed compact enough to be towed by a pickup truck. It was also designed for easy shipping overseas. With some re-assembly, two rigs will fit into a 20 foot shipping container. Most LD Rhino rig components are readily available from third party vendors around the world, for easy service and maintenance. Plus, this unit is self-contained with everything needed to drill a well, including a locking tool and storage box to store tools. With cable tool drilling there is no need for a mud pump or air compressor, therefore reducing the cost of fuel, material and chance of breakdowns.
