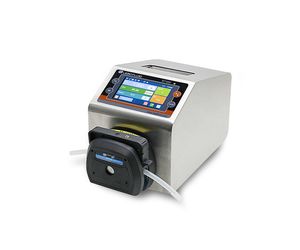

Lead Fluid - Model BT100F -Lead Fluid BT100F Dispensing Peristaltic Pump

SHARE
BT100F Intelligent dispensing peristaltic pump provides flow range from 0.0001 to 720 mL/min with variable pump heads and tubings. 4.3-inch color LCD display, intuitive image Touch screen with key operation, convenient and fast LF-Touch-OS software system, efficient and stable, with good human-computer interaction mode, convenient product customization and upgrade Four working modes, flow rate, time dispensing, volume dispensing, programming dispensing (cycle) Five sets of dispensing parameters for volume and time dispensing pre-storage Programming mode supports 30 different quantitative parameter settings for complex control processes Reversible direction, start/stop, full speed, suction function, timed start-stop Accurate flow control and display, microstep algorithm to ensure the dispensing accuracy of different settings
Most popular related searches
peristaltic pump
dispensing pump
fluid dispenser
peristaltic dispenser
fluid pump
level controller
flow control
flow peristaltic pump
pump tubing
head pump

Flow range: 0.0001-720 mL/min
Speed range: 0.1-150 rpm
Speed resolution: 0.1 rpm
Speed accuracy: 0.2%
Dispensing volume: 0.05mL～9999L
Dispensing time: 1～9999，“0”Infinite cycle
Dispensing interval time: 0.1～999.9 S/Min/H, time unit adjustable
Power supply:AC100～240V，50Hz/60Hz
Power consumption: <40W
External logic level control signal: 5V, 12V (standard), 24V (optional)
External analog control signal: 0-5V (standard), 0-10v, 4-20mA (optional)
Communication interface: MODBUS RS485
Operating condition: Temperature 0-40°C; Relative humidity <80%
IP grade: IP31
Dimensions （L×W×H）260mm×161mm×186mm(10.2 x 6.3 x 7.3 inch)
Weight: 4.7 kg ( 10.36 lbs)
