Lead Lined Frame with X-Ray Glass Windows
We can provide lead frames with x-ray glass for your project-specific requirements. Select from over 40 different standard sizes or request a quote for custom sizes or lead thicknesses. All the x-ray lead glass and window frames listed here meet 2mm lead equivalency based @ 150kvp. The glass is factory set into our radiation shielded window frames. While this is the most common lead equivalency for general X-Ray rooms used by doctors, dentists, chiropractors, and medical centers; you will still need to check with your local health official or radiation physicist to determine the required lead shielding for your room. Standard size window frames comes with a primer finish ready to paint. Ships in 5 business days. These windows fits any wall thickness between 4.25" to 8". Your rough opening size will be 1" over the order size (ex: 24" x 24" will have a 25" x 25" rough opening)
Your visible glass size will be approx 1-1/4" under order size (ex: 24" x 24" will have a 22-3/4" x 22-3/4" visible glass size)
The pricing listed for Lead Glass and Lead Lined Window Frame includes shipping
Impact resistant X-Ray safety glass is available upon request and is permanently labeled as safety glass in compliance with ANSI Z97.1 and CPSC 16 CFR Part 1201 CAT I for impact resistance.

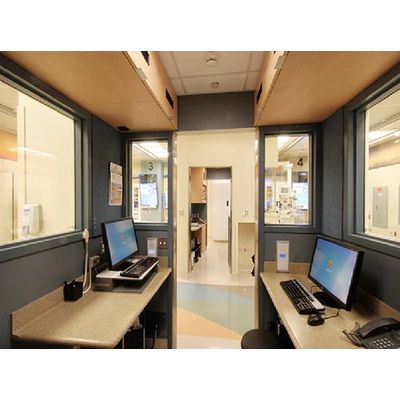

Radiation shielding lead glass is installed in x-ray room windows to help protect against radiation exposure while allowing optimal visibility into the room while procedures are being performed. This is vital to ensure that medical personnel are kept safe from harmful radiation. Lead glass is also used in other applications where radiation is present, such as in nuclear medicine. In these cases, lead glass is used to shield against gamma rays, which are even more penetrating than x-rays. Lead lined frames are also an essential component of radiation shielding, as they help to ensure that the lead glass is firmly mounted in place and that no radiation is passing through the frame.
Of course, we all know that too much exposure to radiation can be dangerous. But what many people don’t realize is that even small amounts of radiation exposure can add up over time and lead to health problems. That’s why it’s so important to make sure that you are protected from radiation with lead glass and lead lined frames whenever you are in a situation where there is a potential for exposure. X-rays produce ionizing radiation, which can damage cells in your body and lead to a wide range of serious health problems.
