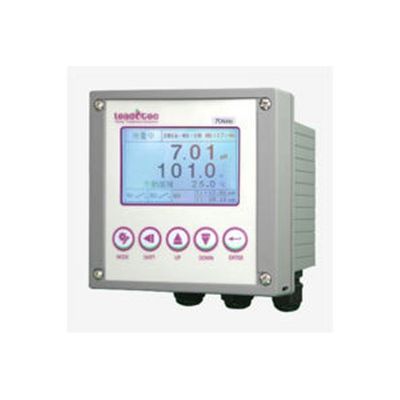

Leadtec - Model PD 6000 -PH+DO Controller
Suitable For Outdoor Use (Ip65 Rating). Large Dot Matrix Lcd Display For Easy Operation. Two Current Outputs, They Can Smooth The Output Current. Two Standard Relays With Delay Feature. One Multi Function Relay, Clean, Period Alarm, Error Alarm. Rs485 Communication Using Modbus Rtu Protocol. 500,000 Sets Of Data Can Be Internally Recorded. Calendar Feature, Built-In Self -Test For The Current And Relay Outputs. Supports English, Traditional Chinese And Simplified Chinese Operational. Can Fit With Bluetooth Type(Pd6000b/Pd800b). Can Connect With Ph & Do Sensor In Same Time.
Most popular related searches
- Ambient temperature range : 0 to +70?
- Storage temp. : -20 to +70?
- Display : Back light, dot matrix
- AM current output 1 : Isolated,4 to 20 mA output,max.load 500Ω
- Temp.current output 2 : Isolated,4 to 20 mA output,max.load 500Ω
- Current output accuracy : ±0.05 mA
- RS485 : Modbus RTU protocol
- Baud rate : 9600/19200/38400
- Maximum relay contracts capacity : 5A/250VAC , 5A/30VDC
- Cleaning setting : ON: 1 to 1000 seconds, OFF: 0.1 to 1000 hours
- One multi function relay : clean /period alarm/error alarm
- Relay delay : 0-120 seconds
- Data logging capacity : 500000
- Language selection : English /traditional Chinese/simplified Chinese
- Waterproof grade : IP 65
- Power supply : From 90 to 260 VAC,power consumption <5 watts
- Installation : panel/wall/pipe installation
