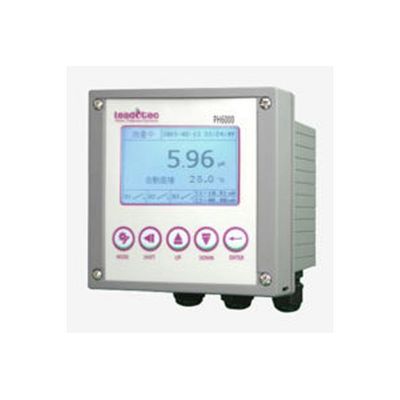

Leadtec - Model PH 6000 -PH/ORP Controller
Functions : PH : ORP. Measuring range : -2.00 to +16.00 pH : -2000 mV to +2000 mV. Resolution : 0.01 pH : 1 mV. Accuracy : ±0.01 pH : ±1 mV. PH range : Pt 1000 / NTC 10K. Temp.compensation : -10.0 to +130.0?. Temp.range : -10.0 to +130.0?. Temp.resolution : 0.1?. Temp.accuracy : ±0.2?. Ambient temperature range : 0 to +70?. Storage temp. : -20 to +70?. Input impedance : >1012Ω. Display : Back light, dot matrix. PH/ORP current output 1 : Isolated,4 to 20 mA output,max.load 500Ω. Temp.current output 2 : Isolated,4 to 20 mA output,max.load 500Ω. Current output accuracy : ±500 mA. RS485 : Modbus RTU protocol. Baud rate : 9600 / 19200 / 38400.
Most popular related searches
- Maximum relay contacts : 5A / 250VAC , 5A / 30VDC
- Cleaning setting : ON: 1 to 1000 seconds, OFF: 0.1 to 1000 hours
- One multi function relay : clean /period alarm/error alarm
- Relay delay : 0-120 seconds
- Data logging capacity : 500000
- Language selection : English /traditional Chinese/simplified Chinese
- Waterproof grade : IP 65
- Power supply : From 90 to 260 VAC,power consumption <5 watts
- Installation : panel/wall/pipe installation
- Instrument size : 144 mm X 144 mm X 105 mm(HxWxD)
- Cutout size : 138 mm x 138 mm
- Weight : 0.85 kg
- Suitable For Outdoor Use (Ip65 Rating)
- Large Dot Matrix Lcd Display For Easy Operation
- Two Current Outputs, They Can Smooth The Output Current
- Two Standard Relays With Delay Feature
- One Multi Function Relay, Clean, Period Alarm, Error Alarm
- Rs485 Communication Using Modbus Rtu Protocol
- 500,000 Sets Of Data Can Be Internally Recorded
- Calendar Feature, Built-In Self -Test For The Current And Relay Outputs
- Supports English, Traditional Chinese And Simplified Chinese Operational
- Can Fit With Bluetooth Type(Ph6000b/Ph800b)
