LI-COR - Model LI-600N -Leaf Porometer and Fluorometer System

SHARE

The LI-600N Porometer/ Fluorometer is the only instrument specifically optimized to measure the stomatal conductance and chlorophyll fluorescence of a single needle, narrow leaf, or blade of grass. Measure stomatal conductance and chlorophyll fluorescence simultaneously from single needles, narrow leaves, and grasses.

Most popular related searches
stomatal conductance
chlorophyll fluorescence
fluorometer system
fluorometer
flow monitoring
porometer
water conductivity
chlorophyll
chlorophyll fluorescence monitoring
cuvette

Leaf sizes

  • Width: 1-3.5 mm
  • Length: minimum 14.2 mm
  • Thickness: maximum 2.8 mm

The LI-600N is designed to quickly survey needles, narrow leaves, and grasses under ambient conditions.

  • Reaches stability in 5-15 seconds across a range of gsw rates.
  • Utilizes user-configurable stability criteria.
  • Log a measurement with the press of a button.

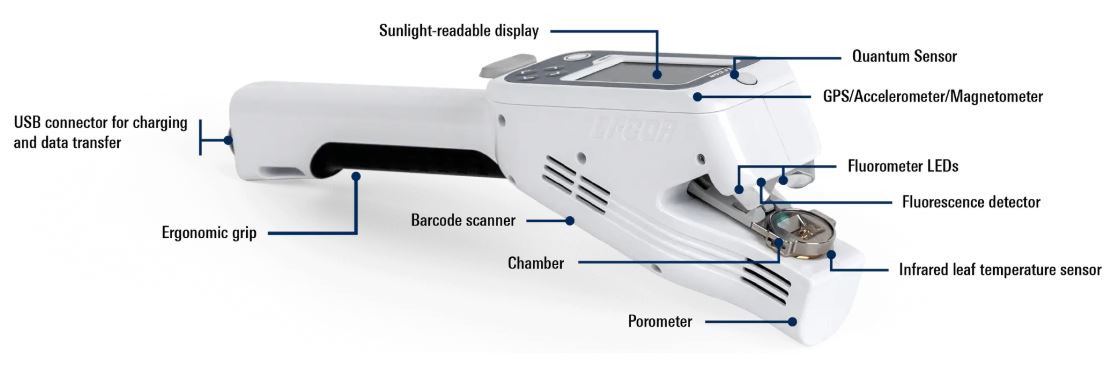

The LI-600N brings together numerous innovative technologies to deliver fast, accurate, and dependable measurements in a compact, handheld device.

Stomatal conductance

The LI-600N uses an open flow-through differential measurement for quantifying transpiration (E) and stomatal conductance around the needle or narrow leaf. First, E is quantified by measuring the flow rate and water vapor mole fraction of air that enters and leaves the chamber. Meanwhile, total conductance to water vapor (gtw) is computed as a function of E and vapor pressure in the leaf and cuvette. Finally, stomatal conductance to water (gsw) is computed as a function of gtw and the boundary layer conductance to water vapor (gbw).

The advantages of the LI-600N measurement flow path include the following:

  • Flow rates quickly flush through the small chamber volume and result in rapid stabilization for quick measurements
  • A differential measurement in close to ambient conditions
  • Minimally disturbed light, CO2, and H2O during the measurement eliminate the need for desiccant chambers or corrections for large diffusion gradients
  • Automatic matching accounts for drift between the reference and sample sensors
High accuracy at low conductance
Get high-quality, accurate measurements from single needles and blades of grass, even at extremely low conductance.
