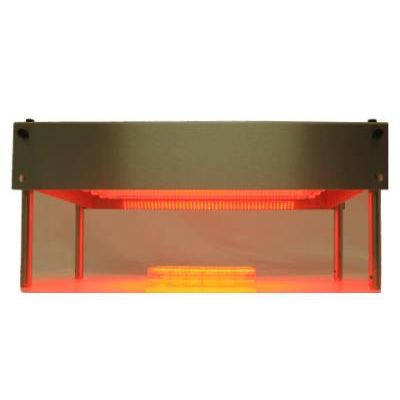

Model Expo-LED -LED Expo Panels Photoreactors
Luzchem’s dimmable LED Expo panels (EXPO-LED) are a cost-effective and flexible solution for narrow and broadband irradiation. Specifically designed for customers whose requirements are not met by Luzchem’s wide range of photoreactors, these LED building blocks offer a new dimension in narrow and broadband visible exposure tools. One set of safety goggles and one set of four mounting posts are supplied with each panel. Add your choice of LED lamps, portable magnetic stirrer and LED power meter for complete package. Optional posts or hardware sold separately.
The EXPO-LED houses 5 LED lamps, providing an emissive area of approximately 7 x 12 inches.
Add your choice of narrow and broadband LED-series lamps:
- Cool white
- Warm white
- Nature white
- Red
- Amber
- Green
- Blue
Not compatible with LZC-series lamps (fluorescent or LZC-LED).
- Dimensions External: 8" wide, 16" long and 3" thick (20 x 40 x 8 cm), Emissive area: approximately 7" x 12"
- Weight 6.5 lbs. / 3 kg
- Power Rating 110/220 VAC, 50/60 Hz cycle, 1 Amp, Ships with North American-style power cable
- Housing Material External: Stainless Steel, Internal (chamber): Al 5052-H32 (aluminum alloy)
- Humidity Must be between 0% and 95% (non-condensing)
