LeMar - Open Belt Conveyors

Raise the bar on efficiency and productivity at your temporary storage piles, barge loading/unloading facilities, port facilities, fertilizer plants, or mining and specialty operations.

Available in a wide range of belt widths including standards from 14-96", LeMar`s structurally sound open belt conveyors come in a variety of finishes with optional stainless steel components.

Choose manual or automatic takeups, specify your walkway and enjoy a conveyor/truss system custom designed for your operation.

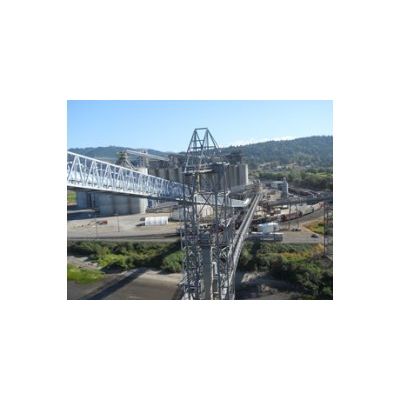

• Integrated truss/conveyor system  with walkway
• Move multiple commodities - grain, fertilizer, aggregate, coal, specialty
• Custom designed for your needs
• Site-specific spans & capacities
• Modeled & integrated
• with in-house 3D software

Belt Options

• Wide range of widths
• Standards from 14-96"
• Multiple cleat options
• Multiple cover options

Idler Options

• CEMA B, C, D, & E
• 0 deg, 20 deg, 35 deg, and 45 deg
• Self aligning
• Poly rolls

Pulley

• Drum pulleys
• Wing pulleys
• Multiple covering options

Take-ups

• Manual (screw) – up to 60" of adjustment
• Automatic (gravity) – custom length and weight per application

Drive Packages

• TEFC or XPFC motors
• Backstops
• Torque arms
• Belt guards
• Poly chain or V-belt

Finishes

• Galvanized
• Powder-coated paint
• Enamel paint
• Epoxy paint
• Stainless

Walkways

• Grip strut
• Expanded metal grating
• Bar grating

Safety Options

• Emergency safety stop packages
• Speed sensor packages
• Rain hoods/idler guards
• Walkway barriers
• Handrails
• Pulley guards
• Automatic take-up safety catch channels
• Automatic take-up barriers

Conveyor Options

• Chutes and Hoppers
• Multiple material options
• Multiple lining options
• Belt Loaders
• Available with inlets
• Available with guards
• Supported from conveyor frame
• Mobility Packages
• Tripper conveyors
• Shuttle conveyors
• Belt Scrapers
