LennRO - Model Greenline -Multi Flow Tap / Low Brackish Water Reverse Osmosis Systems

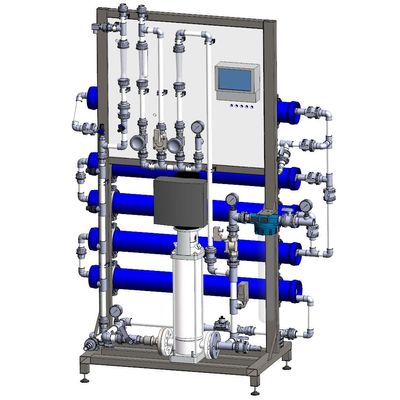

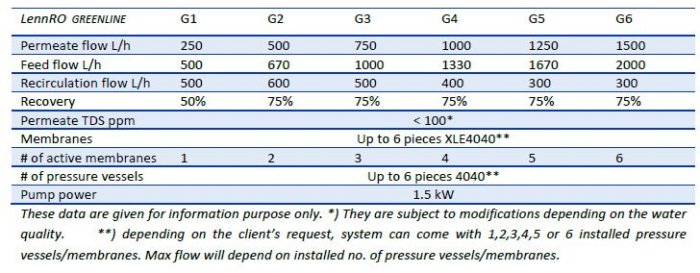

LennRO GREENLINE reverse osmosis system provides low conductivity water from tap water and low brackish water. Lenntech units are ready-to-use, skid mounted, easy to operate. The LennRO gREENLINE come with up to 6 installed Pressure vessel which can be isolated individually. Hereto the system can run on 1 membrane producing 250 l/h and with up to 6 membranes for a production of 1500 l/h.
The pump comes with a variable speed drive and is controlling the feed flow into the system. The system can easily change production capacity by simply stopping the system, opening or closing some valves and changing the set point of the pump and restarting the system.
- Compact design, low energy demand and high recovery;
- Fully automatic system, microprocessor controlled.
- 5-micron cartridge filter;
- High pressure pump with variable speed;
- Permeate conductivity indicated in the front panel display;
- High performance Dow membranes;
- Fiberglass pressure vessels;
- Permeate and concentrate flow meters;
- Pressure indicators after each pump;
- Control cabinet fully automatic;
- CIP connections;
- PVC piping;
- Needle valves, high pressure check valve in stainless steel.
- Antiscalant dosing system;
- Softener;
- CIP station.
- Total dissolved so: lids: Max. 1000 ppm
- pH value continuously: 2-11
- pH short time dur cleaninging: 1-12
- Dissolved iron: Max 0.05 ppm
- Dissolved manganese: Max 0.05 ppm
- Chlorine (continuously): 0 ppm
- Oil and grease: 0 3:rn
- Silt Density Index SDI15: <3
- Turbidity: < 1 NTU
- Temperature: Min. 5°C - max. 30°C
- Pre-pressure: Min. 2 bar - max. 4 bar
Reverse Osmosis units often required pre-treatment for the following parameters:
- Suspended solids
- TOC, COD/BOD, oil and grease
- Iron and manganese
- Hardness
Lenntech provides all kinds of pre and post treatment required before and after your RO, according to your water analysis and process requirements.
