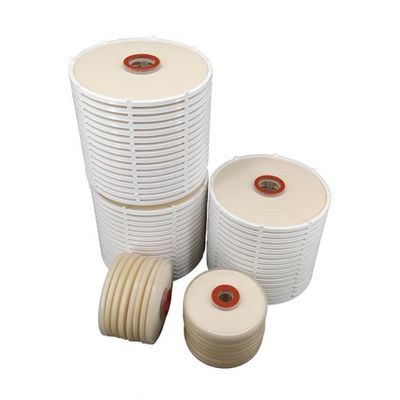

ARC - Lenticular Filter
ECO-DL of the surface and depth filtration provides fibers a long Lenticular filter cartridge with depth filter sheets,multi options diameters and micron ratings.Thefilter media hasa fixed pore construction of high quality the combination life time. Due to use of the premium quality filter fabrics, the depth filter cartridges have superior flow characteristics with very lowwith very low pressure drop compare to normal depth media of similar micron rating, the large filtration area have a high dirty-holding capacity and save the cost.
Most popular related searches
depth filter sheet
depth filter cartridge
lenticular filter cartridge
depth filter
filter cartridge
filter element
lenticular cartridge filter
depth filtration
filter fabric
cartridge filter
- Outer Cage: Polypropylene
- Inner Cage: Polypropylene
- Endcaps: Polypropylene
- O-ring & Gasket: Silicone, EPDM
- Filter Media: Cellulose fibers
- Ratings 0.2-0.4,0.4-0.6,1.0-3.0,2.0-5.0(um)
- Gradient filtration
- High surface area
- Long service life
- FDA listed all polypropylene components
- OD: 8",12",16"
- Length:10"

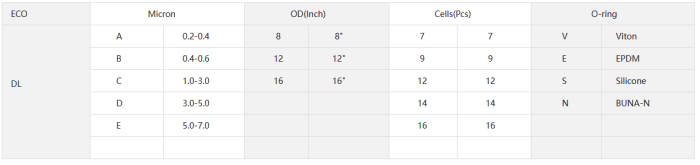

- Part No=DL+Micron+OD+Cells+O-ring
- EG: A 0.4-0.6um filters with OD12",16 Cells and Viton O-ring
- The Part NO:DLB1216V
