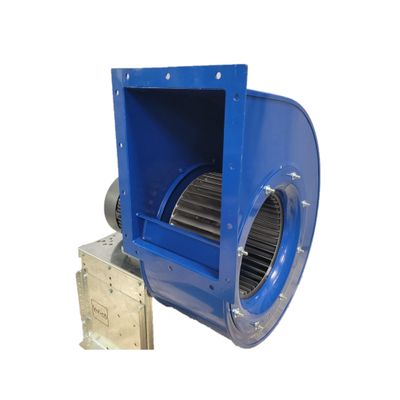

Lev-Co - Model BI -21,000 CFM-13-015 -Direct Drive Fans

Direct Drive Fans, Arr. #4 c/w punched flanged outlet and motor. Motors are TEFC E-Pact 230-460V/575-600V/3/60/-3500 RPM. Wheels are heavy gauge, single thickness, self-cleaning, dynamically balanced to ANSI S2.19-1989 specifications for smooth operation. Inlet and supporting bracket accessories are also available.

All Lev-Co BI fans come in a standard configuration of Clockwise rotation/Up-blast discharge. Alternate discharges can be adjusted by the installing contractor.

Due to the size of these units, mounting is typically on the floor, on legs, or a stand.

Main Options:

• Numerous Motor Options
• Mounting Solutions
• Spark Resistance
• Variable Frequency Drives
• BI Drain
• Quick Access Inspection Door
• No-Loss Stack

• Heavy-Duty construction with continuously welded 14/12/10 ga. housings
• Baked-on polyester coating
• Self Cleaning Wheels
• SWSI (Single Width Single Inlet)
• Direct drive
• Arrangement for centrifugal exhaust fan
• TEFC inverter duty premium efficiency motor
• AMCA B rating spark resistant construction
• Rotatable in 45 degree increments

• Large range of configurations for multiple applications with mounting brackets and
• Direct drive:Higher static pressure, reliability, and no use of belts or pulleys means lower operation costs
• Weatherproof:Baked on power-coat finish for durable high resistance, non-susceptible to UV rays or environmental elements
• Welded construction:Removes the possibility of pressure leaks often found in bolted construction
• 45 Degree Rotation:Fans are able to be rotated at 45 degree increments to allow for angular up/down discharge.

Top 5 contaminants/processes/applications:

• Diesel Exhaust Fumes
• Oil Smoke
• Paper Dust
• Acid Fumes
• Crystalline Silica Dust

Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.

IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.

BI-122-70-2
Industrial Exhaust Fan 1300 CFM @ 9 w.g. to 2000 CFM@5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class II c/w, 3 HP, 230-460V/3/60, 3600 RPM. AMCA Type B construction.

BI-122-70-3
Industrial Exhaust Fan 1300 CFM @ 9 w.g. to 2000 CFM@5 w.g.BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class II c/w, 3 HP, 575V/3/60, 3600 RPM. AMCA Type B construction.

BI-135-100
Industrial Exhaust Fan 1800 CFM@1.5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class II c/w, 1.5 HP, 115/230/1/60, 1750 RPM. AMCA type B

BI-135-75-2
Industrial Exhaust Fan 2000 CFM@10 w.g. to 3000 CFM@5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class II c/w, 5 HP, 230-460V/3/60, 3600 RPM. AMCA type B

BI-135-75-3
Industrial Exhaust Fan 2000 CFM@10 w.g. to 3000 CFM@5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class II c/w, 5 HP, 575V/3/60, 3600 RPM. AMCA type B

BI-150-90-2
Industrial Exhaust Fan 3000 CFM@9 w.g. to 4500 CFM@5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class II c/w 7.5 HP, 230-460V/3/60, 3600 RPM. AMCA type B construction

BI-150-90-3
Industrial Exhaust Fan 3000 CFM@9 w.g. to 4500 CFM@5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class II c/w 7.5 HP, 575V/3/60, 3600 RPM. AMCA type B construction

BI-165-75-2
Industrial Exhaust Fan 4000 CFM@10 w.g. to 5000 CFM@6 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 10 HP/3 PH, 230-460V/3/60, 3600 RPM. AMCA Type B Construction

BI-165-75-3
Industrial Exhaust Fan 4000 CFM@10 w.g. to 5000 CFM@6 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 10 HP/3 PH, 575V/3/60, 3600 RPM.AMCA Type B Construction

BI-182-70-2
Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 15 HP/3 PH, 230-460V/3/60, 3600 RPM. AMCA type B construction

BI-182-70-3
Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 15 HP/3 PH, 575V/3/60, 3600 RPM. AMCA type B construction

BI-182-95-2
Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 15 HP/3 HP, 230-460V/3/60, 3600 RPM. AMCA type B construction

BI-182-95-3
Industrial Exhaust Fan 5000 CFM@12" w.g. to 7000 CFM@4 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 15 HP/3 HP, 575V/3/60, 3600 RPM. AMCA type B construction

BI-270-65-2
10,000 CFM@7.5" w.g. to 12,000 CFM@5.5 w.g. BI Direct Drive Fan c/w slip fit inlet, flanged outlet; Class IV c/w 20 HP/3 PH, 230-460V/3/60, 1750 RPM.

BI-270-65-3
10,000 CFM@7.5" w.g. to 12,000 CFM@5.5 w.g. BI Direct Drive Fan c/w slip fit inlet, flanged outlet; Class IV c/w 20 HP/3 PH, 575V/3/60, 1750 RPM.

BI-270-85-2
Industrial Exhaust Fan 12,000 CFM@8" w.g. to 14,500 CFM@5.5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 25 HP/3 PH, 230/460/3/60, 1750 RPM.AMCA type B construction

BI-270-85-3
Industrial Exhaust Fan 12,000 CFM@8" w.g. to 14,500 CFM@5.5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 25 HP/ 3 PH, 575V/3/60, 1750 RPM. AMCA type B construction

BI-270-100-2
Industrial Exhaust fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 30 HP/ 3 PH, 230/460/3/60, 1750 RPM.AMCA type B construction

BI-270-100-3
Industrial Exhaust Fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 30 HP/ 3 PH, 575V/3/60, 1750 RPM.AMCA type B construction

BI-300-100-2
Industrial Exhaust fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 30 HP 230/460/3/60, 1750 RPM.AMCA type B construction

BI-300-100-3
Industrial Exhaust fan 14,000 CFM@8 w.g. to 17,000 CFM@5.5 w.g. BI Direct Drive Fan c/w slip fit inlet, Slip Fit outlet; Class IV c/w 30 HP 575V/3/60, 1750 RPM.AMCA type B construction

• Fan Installation Accessories
• Variable Frequency Drives
• Spark Resistant Option for SQBI fans
• Silencer Option (when ordering main unit)
• Accessories for direct drive and belt driven fans
• No-Loss Stack
