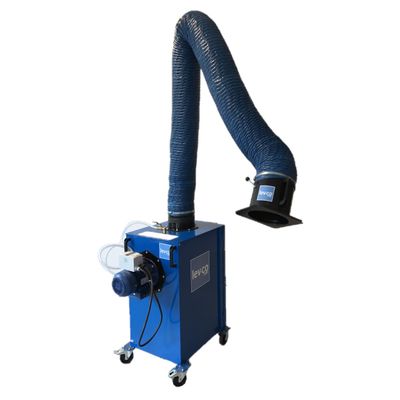

Lev-Co Roll-Flex - Model SCF- 1400 CFM -02-002 -Portable Filter Unit
Roll Flex SCF portable filter for welding fumes, grinding dust and more. This unit is compact, flexible, and self-cleaning. The extraction arm captures fume and dust at a distance of 30-50 cm (12-20``) from the source and within an area of 0.5m (20``) diameter.
Ideally suited for most welding fumes, grinding, and non-explosive/flammable dust applications. This solution comes with a 7’ or 10’ extraction arm and 4 easy to install casters. Typical flow rates of 600 to 1,400 CFM. This unit can also be fitted with an activated carbon filter which removes gases from polluted air.
Options Available:
- Motor Voltage Selection
- Hood & Nozzle Accessories
- Filter Options
- Replacement Hoses
- Variable Frequency Drives
- Fan/Motor Upgrades or Options (when ordering main unit)
- Preventative Maintenance Pressure Gauges (when ordering main unit)
- Unit made of powder-coated steel
- Fan 1.1 kW (1.5HP), 120 V/1/60, 2400 m³/hr. (1400 CFM fan)
- Vibra-Pulse self-cleaning system with a compressed air hook-up attachment
- ON/OFF starter
- Cable
- Plug
- 4 casters
- To be used with 6.5” Ø Extraction Arm
- Hood with optimized airflow & built-in damper and flameproof PVC hose 160mm (6.5”)
- 115 volt:Ability to plug into any standard circuit while maximizing total flow rate, while maximizing usage around the facility
- Fire/melt-proof steel construction:Avoids high priced replacement costs
- Small footprint: Saves space in production area and speedy positioning by the operator
- Cleanable filter:Reduces operating costs
- Integrated spark trap: Reduces fire risk
Top 5 contaminants/processes/applications:
- Welding fumes
- Grinding dust
- Construction dust
- Soldering and Brazing smoke
- General light non-explosive dust
Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
- RF-SCF-7 : Self-Cleaning ROLL FLEX cartridge filter; 1.1 kw (1.5hp), 120 V, 1400 CFM Complete with 2m Extraction Arm (Ø6.5"). AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation prior to shipping.
- RF-SCF-10: Self-Cleaning ROLL FLEX cartridge filter; 1.1 kw (1.5hp), 120 V, 1400 CFM Complete with 3m (10`) Extraction Arm (Ø6.5"). AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation prior to shipping.
- RF-SCF-14: Self-Cleaning ROLL FLEX cartridge filter; 1.1 kw (1.5hp), 120 V, 1400 CFM Complete with 4m Extraction Arm (Ø6.5"). AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation prior to shipping.
- RF-SCF-17: Self-Cleaning ROLL FLEX cartridge filter; 1.1 kw (1.5hp), 120 V, 1400 CFM Complete with 5m Extraction Arm (Ø6.5"). AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation prior to shipping.
- Replacement Filters
- Hood & Nozzle Accessories
- Filter Options
- Preventative Maintenance Pressure Gauges (when ordering main unit)
- Variable Frequency Drives
