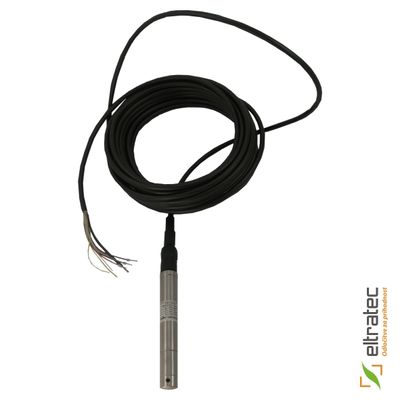

Eltratec - Model PPI 210 -Level and temperature Probe

Submersible compact and robust level and temperature probe, characterized by high accuracy, reliability and long-term operation

Output: 2 x 4-20 mA (level and temperature), 1 digital output (optional)

Programmable measuring range

Probe diameter 22mm

Stainless steel housing

High accuracy

Vented cable

Power supply: 9 - 36V DC (reverse polarity protection)

Measuring range:

      Level: on request (up to 300m) - programmable measuring range, permitted pressure

      overloads up to 300%

      Temperature: 0 ... 100 ° C - programmable measuring range

Output signal: 2 x 4-20mA current, optional - 1 x digital output - open collector max. 24V, 25mA (current limitation)

Permissible Ohm resistance in the current loop (for each current loop): max. 750 Ohm (with 24VDC power supply)

Medium temperature: 0 ... 60 ° C

Measuring error:

      Level: nonlinearity and hysteresis <0.2% of measuring range

      Temperature: <0.3 ° C

Protection: IP68

Housing diameter: 22mm

Housing material: 316L stainless steel

Sensor membrane material: 316L stainless steel

Temperature sensor: PT 1000

Connection cable: polyethylene insulation, air tube, cable length on request (up to 300m)
