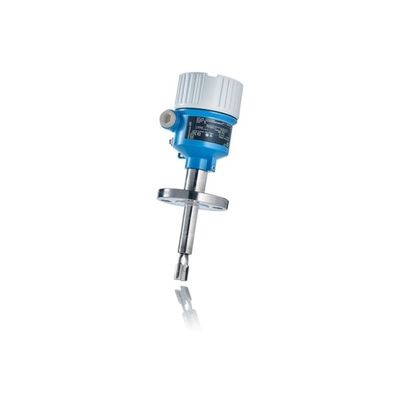

Liquiphant - Model FTL51 -Level Measurement
The new Liquiphant FTL51 is specialized for the process industry and already developed according to IEC 61508 to be used directly in SIL2 and SIL3 applications without big efforts. You conduct periodic proof tests according to SIL or WHG simply mobile with an intuitive wizard. At the end you receive an automated documentation. Liquiphant measures reliably and is not affected by changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
- Diagnostics: Permanent diagnostics increase the safety of the plant. You connect your device via the SmartBlue App and you easily have real-time diagnostics at hand
- Verification: The device can be verified without process interruption. You get verification protocols about the status of your device on your smart device
- Monitoring: With the frequency tracking of the sensor data you have all information at hand for predictive maintenance and process optimization strategies
- With Heartbeat Technology you recognize upcoming corrosion directly
- Periodic proof testing is quickly and simply organized with guided wizards and at the push of the proof test button
- No calibration is required. It is easy to start up
- Developed for direct usage in SIL2 and SIL3 applications according to IEC 61508
Point level switch with extension tube for all liquids.
- Process connections: Threads, flanges and hygienic process connection (Tri-Clamp)
- Temperature: -50 to +150°C (-58 to +302°F)
- Pressure: -1 to +100bar (-14.5 to +1450psi)
- Sensor material: 316L, Alloy
- International explosion protection certificates, overfill prevention WHG, SIL, marine approvals
-
Measuring principle
Vibration Liquids
-
Characteristic / Application
Compact vibronic device with an optional pipe extension up to 6 m;
Modular housing concept;
Wide range of certificates -
Specialities
Heartbeat Technology,
Bluetooth® Operation and maintenance SmartBlue App,
SIL 2/3 according to IEC 61508,
LED Module,
RFID TAG for easy identification,
Second line of defense,
Ambient temperature down to -50°C (-60°C optional),
Temperature spacer for high process temperature,
Plug and play functionalities -
Supply / Communication
19...253V AC / 2-wire
10...55V / DC-PNP 3-wire
9...20V DC / relays
19...253V AC or 19...55V DC / relays
NAMUR
PFM -
Ambient temperature
-60 °C...+70 °C
(-51 °F...+158 °F) -
Process temperature
-50 °C...+150 °C
(-58 °F...+302 °F) -
Process pressure absolute / max. overpressure limit
Vacuum...100 bar
Vacuum...1450 psi -
Min. density of medium
0.5 g/cm³
(0.4 g/cm³ optional) -
Main wetted parts
316L
Alloy -
Process connection
Thread:
G3/4A, G1A, R3/4", R1, NPT3/4, NPT1
Flange:
DN25...DN100
ASME 1"...4"
JIS 25A...100A -
Process connection hygienic
Tri-Clamp ISO2852
-
Sensor length
Up to 6 m
-
Communication
2-wire direct load
DC-PNP 3-wire
Relays
NAMUR
PFM
Bluetooth® wireless technology -
Certificates / Approvals
ATEX, IEC Ex, CSA, NEPSI, KC, JPN Ex, INMETRO
-
Safety approvals
Overfill protection WHG
SIL2 -
Design approvals
EN 10204-3.1
NACE MR0175, MR0103
ASME B31.3
AD2000 -
Marine approval
ABS/ LR/ DNV/ GL
-
Options
Heavy duty stainless steel housing
-
Components
FTL325P Interface PFM
FTL325N Interface NAMUR
