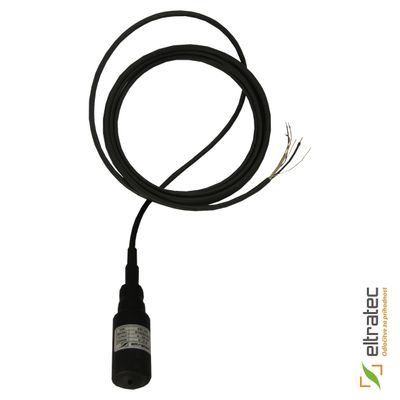

Eltratec - Model PPI 100 -Level Probe

Submersible compact and robust level probe, characterized by high accuracy, reliability and long-term operation

Output: 4-20 mA

Programmable measuring range

Stainless steel housing

High accuracy

Vented cable

Power supply: 9 ... 27VDC (two-wire connection,reverse polarity protection)

Measuring range: on order (up to 300m)

Programmable measuring range by user

Pressure overload: max. 300%

Output signal: 4 ... 20mA current

Max. resistance of the current loop (at 24VDC feeding): 750 Ohm

Temperature of the media: 0 ... +70 C (media must not freeze)

Measuring accuracy: Non-linearity and hysteresis: max. 0,2% of the measuring range (typically 0,1%)

Environment temperature influence: < 0,1%/10ºK

Time stability: max. 0,2%/year

Protection: IP 68

Diameter of the housing of the probe: 40 mm

Sensor membrane material: stainless steel 316L

Connection cable: poliethene coat isolation, ventilated air tube

Cable length: on order (up to 300m)
