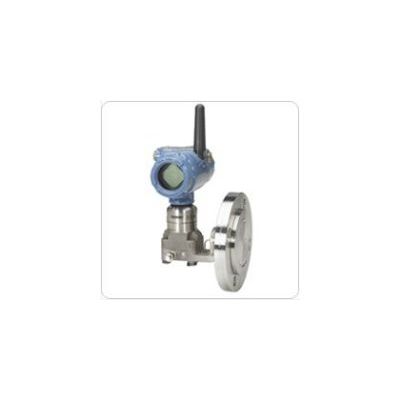

Rosemount - Model 3051S -Level Transmitter

The Rosemount 3051S Scalable Level Transmitter will maximize your level measurement success by providing superior performance and best-in-class reliability. Combined with the comprehensive Rosemount 1199 Seal Systems offering, the 3051S can meet all your level application needs.

DP Level Configuration Assistant
With the DP Level Configuration Assistant, you can quickly:

• Get help specifying a model number
• Obtain a performance report
• Calculate 4-20mA range points

Features & Benefits

3051S Liquid Level Transmitter

1. Enhanced Level Capabilities
Deploy a new level measurements in a matter of minutes with wireless
Advanced diagnostics provide process insight to detect abnormal situations in level applications
Scaled variable allows user to configurable level and volume units

2. Fully Integrated Level Solution
The 3051S Liquid Level design offers an out-of-the-box ready level solution to eliminate on-site assembly, testing, and calibration

3. Tuned-System Assembly Provides Optimized Performance
Tuned-System assemblies can reduce temperature effects by 10-20% and improve response time by over 80%

4. Optimized Seal System Construction
Rosemount Seal Systems are constructed for reliability, high performance and flexibility to ensure a quality product that meets your standards

Specifications

Measurement Type:Differential and gage level measurement
Product Configurations:3051S_L with flush and extended diaphragm seals
1199 Remote Seal optional
Output:4-20mA HART, FOUNDATION fieldbus, WirelessHART
Reference Accuracy:0.065% of span
Rangedown:100:1
Warranty:Up to 12-year limited warranty
