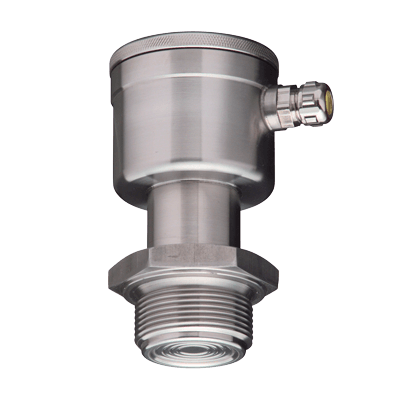

Kiay - Model 8000-SAN -Level Transmitter with Metallic Diaphragm

• All stainless steel housing
• Active temperature compensation
• Strong flush diaphragm
• Zero and span adjustable
• Many hygienic process connections, also EHEDG and 3-A certified

• Measuring range min. max.: 0,04…100 bar
•  Process temperature: -20 °C…+100 °C (145 °C /45 min), option HT max. 280 °C
•  Accuracy: 0,2 % of adjusted span
•  Process connections: Hygienic connections, flanges and threaded connections, all with flush diaphragm
•  Turn down: 4:1
•  Output: 4-20 mA, 2-wire
•  Adjustment: Zero and span internally adjustable
•  Power supply: 12 - 36 Vdc (Ex: 13 - 26,5 Vdc)
•  Protection: IP66 (option IP68)
•  Ambient temperature: -30 °C...+70 °C
•  Diaphragm material: AISI 316L, option Hastelloy C, Tantalum or Gold plated
•  Wetted parts: AISI 316L
•  Electronics housing: AISI 304, option AISI 316
•  Certificates/approvals
•  Explosion safety : ATEX Ex-ia, IECEx Ex-ia and EAC Ex-ia
•  Sanitary standard : EHEDG, 3-A
•  Marine approvals : Lloyd`s, DNV, BV, CCS, ABS, KR
•  Functional safety : SIL2

Hydrostatic level measurement of liquids where a flush diaphragm is needed. Application mainly in the food industry, pharmaceutical industry and chemical industry. The transmitter is suitable for cleaning in place, both CIP and SIP.

• Welding nipples for several connections
