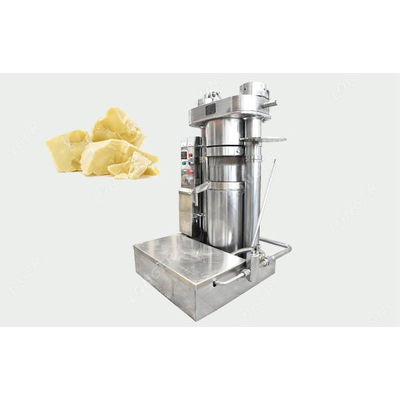

LFM - Model LG-ZY180 -Hydraulic Cocoa Butter Press Extraction Machine

SHARE

The cocoa butter press machine is hydraulic oil pressing machine, it can compress cocoa liquor into cocoa oil and cool it into cocoa butter, is an important cocoa bean processing machine in plant. High oil yield, low oil content of residue, pure oil quality and easy operation.

Most popular related searches
pump pressure relief valve
three-plunger pump
high-pressure pump
hydraulic press
worm gearing
pump station
digital temperature controller
manual valve
relief valve
plunger pump
  • Material: Cocoa Bean
  • Capacity: 30 kg/h
  • Loading Port: Qingdao Port
  • Description: The oil extraction rate of the press machine is high, reaching 90-92%. It is a perfect cocoa butter machine in cocoa bean food produciton factory.
Structure of Hydraulic Cocoa Butter Extraction Machine
This machine mainly consists of three parts: Main body, Hydraulic transmission and Electric control. Following will introduce the three parts in detail:

Part 1: Main body:
It consists of baseplate, upright, top plate, oil press assembly, oil pans, nut and other parts, is one of the main body of the machine, the oil material inside oil pressing assembly, by pushing up the power of the oil cylinder assembly, oil flow from squeeze flow of oil, through the oil pans enter the oil storage barrels.

Part 2: Drive hydraulic parts:
This is the main power source for high oil production rate, it is composed of the transmission shaft, worm gear, worm, gear pump, high pressure pump, relief valve, manual valve, oil cylinder assembly, pipe joints and other parts. The machine adopts German technology of hydraulic pump station, South Korea three plunger pump station, with low speed, high oil pressure, high temperature resistant, the oil temperature above 65 degrees without cooling device, sustainable work.

Part 3: Electric control part:
This is advanced part of this cocoa oil press machine, it is composed of motor, voltage meter, temperature control regulation table, pressure gauge, the power of elements insurance, etc..

How to make cocoa butter from cocoa beans?
Cocoa bean roasting - Peeling - Grinding into cocoa liquor (add water if roasting is too dry) - Pressing oil - Cooling to make cocoa butter

Application of Hydraulic Cocoa Oil Press Machine:
Peanut, almond, walnut, rapeseed, sesame seed, sunflower seed, flaxseed, hemp seed, camellia seed and other oil crops, the oil content of general oil crops is not less than 40%.
