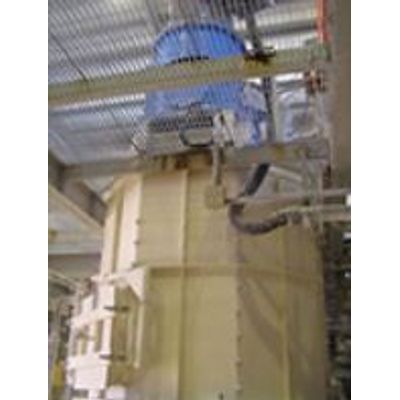

Zhengyuan Powder Engineering Equipment Co., Ltd. - LHE Wet Ultrafine Grinding Machine
The LHE wet ultrafine grinding machine is an advanced and efficient grinding solution designed with an innovative machine structure, optimized machinery size, and uniquely designed parts. This equipment significantly reduces energy consumption by 30% compared to conventional grinding machines while achieving superior fineness of finished products, reaching a granulometry of 2μm with input materials ranging between 200mesh to 325mesh. The machine's components are crafted from high hardness, wear-resistant materials, ensuring long-lasting performance and reliability. Designed to exert minimal impact on power grids with its low starting torque, it also maintains low temperature and viscosity in finished materials. The machine offers versatility, allowing single or combined usage, with fully automatic controls for ease of operation and stable production capacity, alongside minimal grinding medium loss, ensuring no contamination of materials. It is suitable for a wide range of applications, including non-metallic, energy source, ceramic, metal, and chemical materials. The operation involves pumping wet material with grinding mediums, undergoing high-speed rotational grinding before ultrafine materials are filtered and collected.LHE wet ultrafine grinding machine is the newly-developed grinding equipment of our company. Designed with totally-new machine structure, optimized machinery size, uniquely- designed machinery parts, and simplified production process, this wet ultrafine grinding machine has higher performance. Its advantages include:
- High efficiency
- For producing the same amount of material, this wet ultrafine grinding machine consumes 30% less energy in comparison with conventional grinding equipment.
- High fineness of finished products
- The size of grind-need material ranges from 200mesh to 325mesh, and the finished material fineness is 2um.
- The parts inside the grinding machine are made of high hardness, wearing-resistant materials. Hence, the grinding machine features long service life.
- The starting torque is low, and as a result the grinding machine produces a small impact on power grid.
- The finished material has a low temperature, low viscosity, and good fluidity.
- The wet ultrafine grinding machine can be used independently or used in combination with each other.
- Fully automatic controlled, easy to operate, and the production capacity is stable.
- Low loss of grinding medium, and as a result, there is no pollution on materials.
Our wet ultrafine grinding machine can be used for grinding the following materials:
- Non-metallic materials: calcium carbonate, kaolinite, soft kaolin, barite, bentonite, brucite, tourmaline, mica, rare earth, etc.
- Energy source materials: Water coal slurry, petroleum coke slurry, etc.
- Ceramic materials: zirconium silicate, zircon powder, a-alumina, etc.
- Metal: superfine gold and silver ore, molybdenum ore, copper ore, manganese ore, aluminum-zinc ore, etc.
- Chemical materials: aluminum hydroxide, magnesium hydroxide, manganese dioxide, flame retardants, catalysts, iron oxide red, sulfur, metal oxides, and more.
Firstly, the wet material will be pumped into the grinding machine which is prepared with a certain amount of grinding mediums. Then, the driving part will drive the mixing parts to rotate in a high speed. Due to this, the wet materials and grinding mediums will also rotate at a high speed, thus the raw materials will be ground into ultrafine materials under the impact force, shearing force and collision force between grinding mediums.
Finally, the ultrafine materials will be filtered by the vibrating screen, and then will be discharged from the discharging hole and collected by the collection system.
