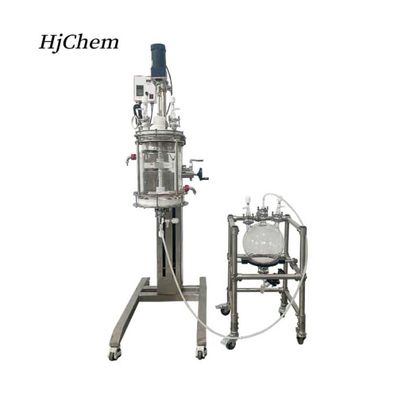

Hjchem - Liftable Tiltable Laboratory Nutsch Filter Glass

1. Volume: 5L, 10L and 20L, 30L, 50L, 100L, form laboratory scale to pilot plant and industrial scale are also available.

2. Vessel: Single wall, double wall.

3. Working pressure: Full vacuum to 0.05/0.1Mpa

4. Working temperature: -80°C ~ +220°C

5. Filter device: PTFE, glass or stainless-steel, pore size 0.1um to 200um

1. Compact Design

The 10L Nutsche filter is designed to be compact and space-efficient, making it perfect for laboratory and pilot-plant operations.

Despite its smaller size, it offers excellent filtration efficiency, especially for processes with moderate volumes.

2. Versatility

It can handle a variety of materials, from fine chemicals to pharmaceutical intermediates.

With its ability to handle both solid and liquid phases, it’s suitable for multiple applications, including filtration, washing and drying.

3. High-Quality Material Construction

The filter typically comes with high-quality construction materials like borosilicate glass.

This ensures durability and resistance to corrosion, making the 10L Nutsche filter suitable for even the harshest environments.

4. Vacuum Operation

Usually 10L Nutsche filters operate with a vacuum system.

Vacuum systems are ideal for fine filtration, while pressure systems are effective for handling high viscosity fluids.

5. Sealed Environment

One of the standout features of the 10L Nutsche filter is its sealed environment.

This is particularly important when working with hazardous or sensitive materials.

The closed system prevents contamination and helps maintain high product purity.

Check our website to see how this nutsche filter reactor lift and tilt:

Liftable Nutsch Filter
