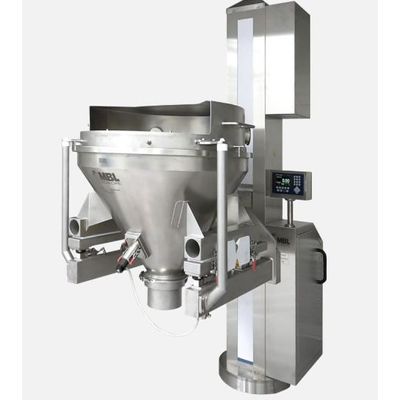

MBL - Lifter with Weighing System
MBL Europe provides advanced lifting systems designed for various industrial applications, particularly in sectors like pharmaceuticals and fine chemicals. These systems include both mobile and stationary lifting devices, with specific products like the lifting column equipped with an integrated weighing system. Such systems enhance operational efficiency by enabling precise weight measurements during handling, thereby streamlining processes such as container and drum handling. Each lifting system is engineered with a focus on safety, reliability, and adaptability to diverse operational conditions. The systems can be customized in terms of configuration and functionality to meet the specific needs of different industrial applications.
Whether for initial weighing at the start of the process or control procedures within the process – we also offer the integration of weighing technology into cleanroom solutions. Depending on the requirements, we use high-quality weighing technology from Siemens or Mettler Toledo, among others. Our range includes stationary autonomous systems, solutions for checking fill levels during container emptying, as well as the integration of weighing technology into the attachments of our mobile and stationary lifting systems.
All highlights at a glance:
- Customised frontends - adapted to the size and material of your drums and containers
- Can be integrated on sieving, dispensing, blending and transport systems
- High-containment solutions with integrated double flap system
- Fully digitalised lifting column with taught step chains for process reliability
- Simple operability and cGMP-compliant design
- Space-saving design with attached control cabinet
- Free-standing or with ceiling connection
- High positioning and repeat accuracy
- Double chain system with fourfold safety
- Electrically operated and low maintenance
- Recipe-controlled – manual or fully automatic
- Combinable with bin-to-bin transfer systems
- Interfaces to other machines possible
- Individual control elements adapted to the process
- Wall installation and installation in laminar air flow (LAF) cabin possible
- Positioning aids on the floor made of POM for target containers
- Optional with barcode scanner and/or RFID scanner
- Optional with discharge aids
All functions at a glance:
- Precise positioning and docking
- Adjustable approach heights
- Feeding of process plants
- Lifting, lowering and swiveling function
- Stepless mechanical securing of the load
- Removable weighing container
- Integrated dust extraction
- Documentation of weighed substances
Customizable according to customer specifications
- Payload : 0 - 500 kg
- Lift : electric
- Material : 1.4301/304L, 1.4404/316L, 1.4201/316L, stainless steel
- Lifting height : 1,000 - 8,000 mm
- Load distance : 600 - 1,500 mm
- Slotcover : Plastic and stainless steel versions available
- Standard : Can be executed according to DIN EN 1493 or DIN EN 1570 depending on requirements
