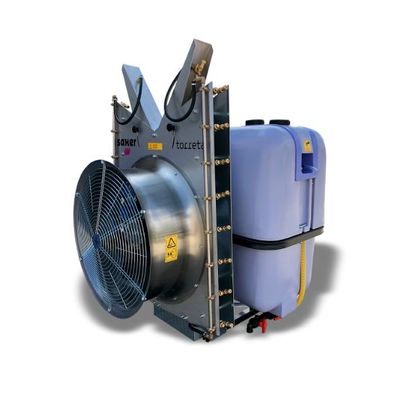

Liftmounted Atomizer Correas Torreta
3 polyethylene tanks (main, circuit washer and hand wash basin). Capacities (from 400 to 1,200 lts.). Chassis reinforced with anti-corrosion treatment and painted. Annovi Reverberi AR-813 pump (3 diaphragms,81 l/m,50 atm). Stainless steel nozzle. Stainless steel spray tube.. Pulley disconnector. Manual regulating knob 2 outlets and pressure gauge Ø63. Anti-pollution charger. Hydraulic stirrer. Reinforced transmission. Tank interior cleaning robot (from 500 lts.). Lateral stairs from 1,000 lts. and above.. Torreta group.
Code : Main : Wide : Long : High : Fan
A400-V800T : 400 lts. : 1200 mm : 1560 mm : 1600 mm : Ø800
A500-V800T : 500 lts. : 1200 mm : 1560 mm : 1600 mm : Ø800
A600-V800T : 600 lts. : 1450 mm : 1610 mm : 1600 mm : Ø800
A800-V800T : 800 lts. : 1460 mm : 1610 mm : 1600 mm : Ø800
A1000-V800T : 1.000 lts. : 1500 mm : 1710 mm : 1640 mm : Ø800
A1200-V800T : 1.200 lts. : 1500 mm : 1710 mm : 1840 mm : Ø800
- Skirt
- Different jets and nozzles
- Different pumps
- Different controls and solenoid valves
- Computers
- Powder mixer
- Product Incorporator
- Electrical installation kit
- Galvanized chassis
