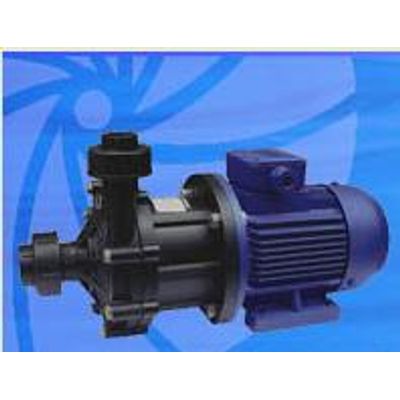

SIKO - Model CQ(F) Series -Light Duty Magnetic Driving Pump
CQ(F) series pump is a kind of magnetically coupled pumps, or magnetic drive pumps, vary from the traditional pumping style, as the motor is coupled to the pump by magnetic means rather than by a direct mechanical shaft. The pump works via a drive magnet, `driving` the pump rotor, which is magnetically coupled to the primary shaft driven by the motor. The CQ magnetic driving centrifugal pumps are often used where leakage of the fluid pumped poses a great risk (e.g., aggressive fluid in the chemical or nuclear industry, or electric shock garden fountains). They have no direct connection between the motor shaft and the impeller, so no gland is needed. There is no risk of leakage, unless the casing is broken..
Excellent corrosion resistance
The CQ magnet dirve pump Main components are mode of highly corrosion resistant materials such as stainless steel, high density carbon, high purity alumin ceramics, and PVDF (polyvinylidene fluoride) or PP (polypropylene), The use of such material combined with a leakfree sealless construction ensures the safe transfer of most type of chemical liquid. magnetic seal with leak less and low noise operation.
High-efficiency/energy-saving design
The maximum pump efficiency reaches 50 to 55%, the highest level for resin pumps. In designing the pump, energy-saving was taken into full consideration.
Suitable for chemical liquid progress
The CQ magnetic driving centrifugal pump is an ideal for tough and heavy circumstances like inflammable, explosive and strongly corrosive and toxic.
Easy maintenance/inspection
Compact design with optimized construction. The structure is simple, with a minimum of components. In addition, the major parts are modularized for easy and quick disassembly and inspection. The expendable parts can be replaced individually..
- Capacity range: 20 to 3350L/min
- Lift head range: 5 to 50m
- Power range: 0.18 kw to 30 kw.
- Connection size: DN14 mm to DN150 mm.
- Motor: 50Hz/60Hz, 220V/380V/440V, 3 ph.(single phase for small pump).
- Material: Pump wet parts: stailess steel or PVDF and PP
