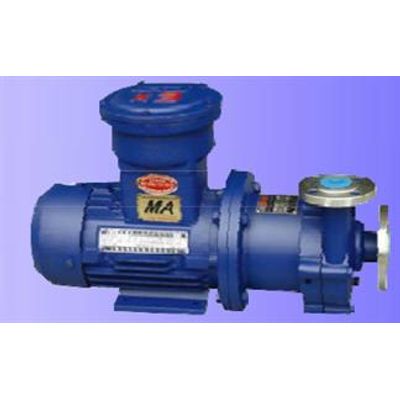

SIKO - Model CQ-P -Light Duty Magnetic Driving Pump

Excellent corrosion resistance
The CQ magnet dirve pump Main components are mode of highly corrosion resistant materials such as stainless steel, high density carbon, high purity alumin ceramics, and PVDF (polyvinylidene fluoride) or PP (polypropylene), The use of such material combined with a leakfree sealless construction ensures the safe transfer of most type of chemical liquid. magnetic seal with leak less and low noise operation.

High-efficiency/energy-saving design
The maximum pump efficiency reaches 50 to 55%, the highest level for resin pumps. In designing the pump, energy-saving was taken into full consideration.

Suitable for chemical liquid progress
The CQ magnetic driving centrifugal pump is an ideal for tough and heavy circumstances like inflammable, explosive and strongly corrosive and toxic.

Easy maintenance/inspection
Compact design with optimized construction. The structure is simple, with a minimum of components. In addition, the major parts are modularized for easy and quick disassembly and inspection. The expendable parts can be replaced individually..

• Capacity range: 20 to 3350L/min
• Lift head range: 5 to 50m
• Power range: 0.18 kw to 30 kw.
• Connection size: DN14 mm to DN150 mm.
• Motor: 50Hz/60Hz, 220V/380V/440V, 3 ph.(single phase for small pump).
• Material: Pump wet parts: stailess steel or PVDF and PP
