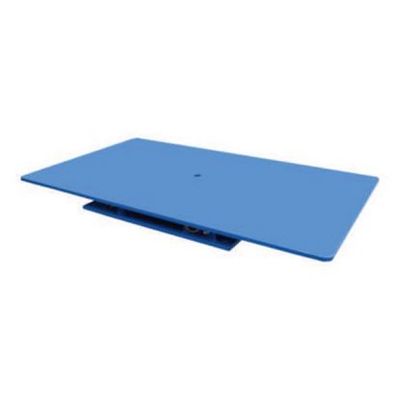

Advance Lifts - Model TMl-100 -Light Duty Non-Powered, Turntable
Turntables are used for positioning jobs where heavy duty loads must be rotated on a regular basis. There are two basic types of standard duty turntables, non-powered and powered. Turntables are available in low profile and high profile configurations.
Most popular related searches
- Capacity: 1,000 lbs.
- Edge Load Max: 50 lbs.
- Minimum Platform: 30 x 30 in.
- Maximum Platform: 48 x 48 in.
- Height: 3.5 in.
- Roller Radius: 9
- Weight: 175 lbs.
- Lower cost than powered turntables.
- These units are manually rotated.
- These units can be rotated in either direction.
- All non-powered turntables are low profile.
- Standard platforms are rectangular and round platforms are optional on all models except TML.
- Rotational limits can be provided via optional detents, locking pins, and hard stops.
- TM platforms are supported by lifetime lubricated roller bearing cam followers.
- TML platforms are supported by lifetime lubricated ball bearing roller.
- Platforms rotate around a lifetime-lubricated kingpin bearing.
