Waterline Envirotech - Light Duty Tape Level Meter

Tape: a very strong, flexible, polyethylene-coated 3/8th inch wide, steel tape with 2 stainless steel conductors.

Metric Scale: marked in meters, centimeters, and millimeters.

Probe: a thin, stainless steel, and highly sensitive sensor, with removeable segmented weights, which allows easy access, even through a ½ inch bolt hole, and indicating water within millimeters. View

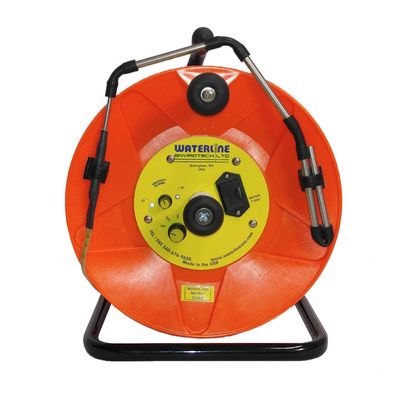

Reel: free standing durable plastic reel in various sizes with central brake system on strong metal frame. 300 meters and larger sizes have metal reel.

Electronics which consists of:

1. A select switch with 4 positions:
   • Off – when not in use to avoid draining the battery.
   • Test – to check battery, light and buzzer will operate together.
   • LED – for visual signal, ultra bright LEDs light up when probe reaches water.
   • Buzz – for audible signal, buzzer sounds when probe reaches water.
2. A sensitivity switch – adjusts the probes sensitivity in individual wells and helps avoid false readings in cascading water.
3. A battery drawer – for one 9 volt battery.  Easy access for batter change.
