EltekModel GD72E -Light, UV and Temperature Transmitter

SHARE

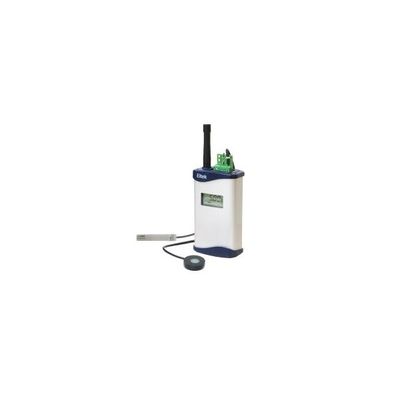

As all sensors are on leads, the combination is ideal for all environments and in particular display cases, so that only the light sensor and tip (top 10mm) of the RHT10E probe need be visible. The LS50 (`Light puck`) and LS70 modules utilise the museum and conservation industry preferred Elsec - Littlemore light / light and UV sensors. The GD72E transmitter interfaces with all sensors at digital level so that no system accuracy is lost. When used with Darca Heritage software both instantaneous and cumulative light and UV values can be provided. The LS50 light only module, LS70 light/UV module, and the RHT10E must be ordered separately.

Most popular related searches

LS50 light puck

  • Dimensions: 33mm diameter x 8 mm height
  • Lead length: 2m

LS70

  • Dimensions: 73 x 50 x 30mm.
  • Lead length: 2m

Common GenII Transmitter Specification

  • RF specification: EN300-220
  • RF power: 10mW

Environment specification

  • Compliant to EN300-220: -10 to +55°C
  • Actual: -30 to +65°C
  • Humidity: 100% non condensing
  • Environmental rating: IP40
  • Dimensions (footprint): 78 x 41mm
  • Transmission interval range: 1 sec to 4 hours
  • Indicator (red LED): transmit active/on/off
  • Control switch (concealed): test mode / hibernate
  • Antenna socket: SMA
