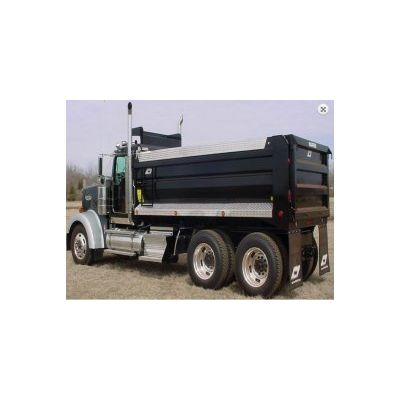

Warren - Model WS-700 Series -Light Weight Steel Dump Body
FromWarren, Inc.
Warren’s WS-700 series is a light weight steel dump body designed for hauling aggregate, sand, or asphalt. The WS-700 utilizes ASTM A1011 A-45 high tensile steel in a unibody design to provide a clean, tough, lightweight hauling body. The crossmember-less design eliminates material buildup and makes for easy cleanup and maintenance.
- 10 gauge high tensile steel sides, front, & gate w/ 3/16” floor
- Body, & NTEA rated hoist manufactured by Warren
- Continuous welding throughout body for additional strength
- Cross-memberless – no dirt buildup in cross-members
- Full depth rear corner post with full depth rear crossmember
- 4 x 4 x 1/8” boxed tubing top rails
- One-piece poly hydraulic tank for corrosion resistance & reduced weight
- Understructure: 8″ I-Beam @ 13.0#/ft. long rails No Crossmembers
- Floor: 3/16″ AR-450
- Sides: 42″ Height, 10 ga high tensile steel, Boxed top rail 4” x 4” x 1/8”, Dirt shedding rub rail
- Tailgate: 50″ height, 10 ga high tensile steel, 18” sloped gate, Boxed perimeter with horizontal braces
- Front Bulkhead: 10 ga high tensile steel, Die formed corrugation
- Dimensions: Lengths –12′, 13′, 14′, 15′, 16′, 17′, 18′
- Tarp System
- High Lift Tailgate
- 1/4; 1/2; or Full Cab Shield
- Vertical end
- 12” sloped end
- Spreader Apron
- Custom Paint
- LED Lights
- AR 400 floor
