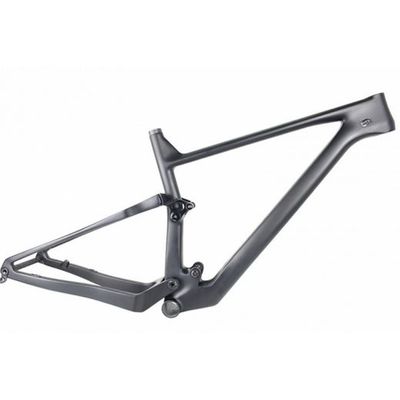

LightCarbon - Model LCFS917 -Cross Country MTB Frame Full Suspension Frame
LightCarbon XC Full Suspension Frame 29er Cross Country MTB Frame. Carbon 650B plus/ 29er full suspension XC frame. 165*38mm or 165*45mm rear shocks( trunnion mount). Front and rear travel are 100~120mm. 12*148mm boost thru axle. 2 years quality warranty.
Most popular related searches
- Frame: 29er full suspension XC cross country carbon mtb frame
- Material: High modulus Toray T700 carbon fiber
- Size: 16", 18",20"
- Weight(+/-50g): Size 18"-I950g
- Front Travel: I00~l20mm
- Rear Travel: I00~l20mm
- Head Tube: Tapered 1 l/8"-l l/2" headtube.upper 42mm lower 52mm (headset standard FSA NO.42 ACB)
- Seatpost Diameter: 31.6mm(34.9 clamp). Dropper seat post insert depth: 16" -max 130mm, 18" -max 170mm.20"-2l0mm
- Bottom Bracket: Press Fit BB92
- Max Tire Clearance: 27.5er*2.8" or 29er*2.35"
- Max Compatible Chainring: 34T
- Chainline: 52mm
- Brake Type: Post Mount Disc Brake 160mm
- Rear Shock: I65*45mm trunnion mount-l20mm rear travel (hardware upper M8*22.2mm, bottom Ml0"54mm) 165*38mm standard mount-lOOmm rear travel (hardware upper M8*22.2mm, bottom M8*22.2mm)
- Dropout: I2*l48mm Boost thru axle
- Fork Offset: 5lmm offset fork,M15"110mm boost recommended
- Test Standard: ISO4210
