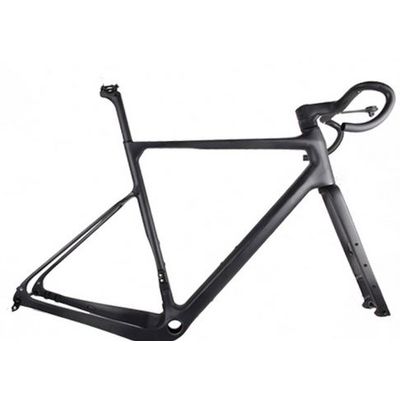

LightCarbon - Model LCG071-D -Gravel Frameset with Integrated Handlebar
Shimano flat mount type disc brake. Max tire clearance 700*53C or 650B*2.1``. Full internal cable routing. Front 12*100mm thru axle, rear 12*142mm thru axle. 27.2mm seat post.
Most popular related searches
- Frame: LightCarbon 2021 New Gravel Frameset with Integrated Handlebar
- Material: High modulus Toray T700 carbon fiber
- Size: 49, 52,55. 58 (cm)
- Fork: lightcarbon specify carbon fork
- Handlebar size: 400/420/440mm
- Stem size: 90/l00/ll0/l20mm
- Headtube: Straight 11/2" head tube(upper 52mm lower 52mm)
- Weight: Frame 980+/-40g/fork 430+/-l5g/seat post 190+/-I0g/ Handlebar 360+/-l5g (Size 52)
- Seatpost: 27.2mm*400mm (with 25mm offset)
- Bottom bracket: Press-Fit BB86
- Max tire clearance: 700*53C or 650B-2T
- Max Chainring: If use single chainring, max 42T (corresponding chainline=49.7mm).
- : If use double chainring, max 54/42T (chainline=43.5mm), min 46-30T (chainline=47mm)
- Brake mount type: Shimano flat mount disc brake (disc brake bolts length 38.2mm)
- Dropout: Front I2*l00mm TA Rear I2*l42mm TA
- Groupset: Mechanical and Di2 compatible (Not compatible witfi old redr derailleur without B-LINK, eg old 105 5800)
- Test Standard: ISO4210
- Warranty: 2 years
