Teksan - Model TJ5MS5M-LM -Lighting Towers

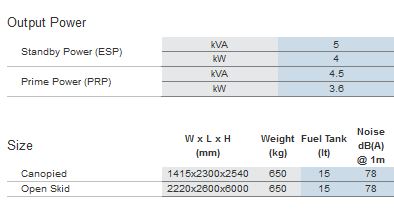

• Manufacturer  MITSUBISHI
• Model  MVL3E-61SD-NP2
• Cylinder Configuration  INLINE
• No of Cylinders  3
• Displacement     lt     0,952
• Bore     mm     76
• Stroke     mm     70
• Compression Ratio  23:1
• Aspiration  NATURALLY ASPIRATED
• Governor Type  MECHANIC
• Cooling System  WATER
• Coolant Capacity     lt     1,8
• Lubrication Oil Capacity     lt     4,2
• Electrical System     VDC     12
• Speed / Frequency 50 Hz     rpm     1500 rpm / 50 Hz
• Engine Gross Power (Standby 50 Hz)     kW     7,4
• Fuel Consumption %110 ESP 50 Hz     lt/h     TBA
• Fuel Consumption %100 PRP 50 Hz     lt/h     2,1
• Fuel Consumption %75 PRP 50 Hz     lt/h     TBA
• Fuel Consumption %50 PRP 50 Hz     lt/h     TBA
• Exhaust Outlet Temperature 50 Hz     °C     TBA
• Exhaust Gas Flow 50 Hz     m3/min     TBA
• Combustion Air Flow 50 Hz     m3/min     TBA
• Cooling Air Flow 50 Hz     m3/min     TBA

• Manufacturer  NSM
• Model  K132B
• No of Phases  3
• Power Factor  0,8
• No of Bearings  SINGLE
• No of Poles  4
• No of Leads  2
• Voltage Regulation (Steady State)  +5%, -8% (cosφ = 1)
• Insulation Class  H
• Degree of Protection  IP 23
• Excitation System  Brushless with Capacitor
• Connection Type  TBA
• Total Harmonic Content (No Load)  < %5
• Frequency     Hz     50
• Voltage Output 50 Hz     VAC     120 / 240
• Rated Power (Standby) 400_50 Hz     kVA     5
• Efficiency (4/4_400 V_50 Hz)     %     77

General Specifications

TEKSAN Lightning Tower cabins have following standard specifications;

• Cabin designs which are providing mobility in works performed in open areas and works of which usage areas change and suitable for crane and forklift usage,
• Exhaust muffler embedded in the cabin,
• Emergency stop button located on the cabin,
• Air-suction channels developed to provide homogeneous cooling in the cabin,
• On-cabin case providing to fill water and anti-freeze to the radiator easily,
• Painting system reinforced against corrosion and oxidation,
• Advanced performance in terms of sound emission,
• Electric components and demounting parts providing easy care, maintenance, repair and carrying,
• Auxiliary power sockets,
• Collapsible tow-bar,
• Hand-brake,

Optional Equipment

Some of the optional generator set equipment provided by Teksan are;

• Fuel tank, oil sump, panel, alternator winding heaters,
• Generator output switch,
• Isolated cabins suitable for special sound level demands,
• Trailer,
• Remote monitoring,
• Electric and mechanic tower security control,
• Projector position controls by electric and mechanic tower,
• Led and projector type lightning options,
• Diesel and hybrid power based solution options,
• Battery bank options at different capacity for hybrid solutions,

Control Panel Features-TJ 509-T

• The TJ-509T is a next generation genset control unit combining multi-functionality and wide communication possibilities together with a reliable and low cost design.
• The unit complies and mostly exceeds world’s tightest safety, EMC, vibration and environmental standards for the industrial category.
• Software features are complete with easy firmware upgrade process through USB port. The Windows based PC software allows monitoring and programming through USB, RS-485, Ethernet and GPRS.
• The PC and server based Rainbow Scada software allows monitoring and control of an unlimited number of gensets from a single central location.

Functions

• AMF unit with uninterrupted transfer
• ATS unit with uninterrupted transfer
• Remote start controller
• Manual start controller
• Engine controller
• Remote display & control unit
• Waveform display of V & I
• Harmonic analysis of V & I
• CTs at genset or load side

Communications

• SM-GPRS
• Web monitoring
• Web programming
• GSM-SMS
• e-mail
• USB Device
• RS-232
• J1939-CANBUS

Topologies

• 2 phase 3 wires, L1-L2
• 2 phase 3 wires, L1-L3
• 3 phase 3 wires, 3 CTs
• 3 phase 3 wires, 2 CTs (L1-L2)
• 3 phase 3 wires, 2 CTs (L1-L3)
• 3 phase 4 wires, star
• 3 phase 4 wires, delta
• 1 phase 2 wires
