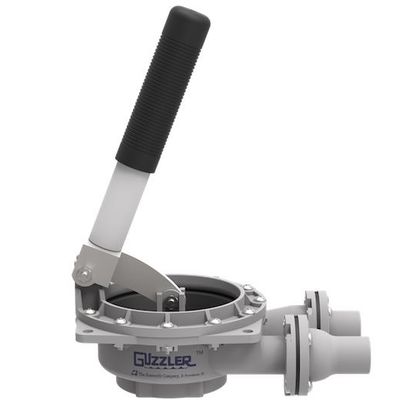

Guzzler - Model GH-0450D -Lightweight Vertical Hand Pump
Reliable, rugged, lightweight hand pump ideal for bilge or fluid transfer applications. Space-saving design with inlet/outlet ports on same side of body. Available with optional tapped aluminum mounting standoffs.
Most popular related searches
- Durable, lightweight Acetal plastic
- Space-saving same-side ports for installation in close-fitting spaces
- Accommodates 1/2" to 1-1/4" hose
- 10 GPM
- Rugged aluminum handle
- Clamp ring adjusts to 12 different handle orientations
- Optional aluminum clamp ring for added durability
- Use with thru-deck mounting kit (TDMK-34-S) for below deck mounting
- Max Pressure 15 psi / 1.03 bar
- Lift 12.0 ft / 3.7 m, 22.0 ft / 6.7 m with check valve
- Head 30 ft / 9.1 m
- Capacity (@ 90 strokes/min) 10.0 gpm / 37.9 lpm
- Volume per stroke 0.44 qt / 0.42 l
- Max Service Temp 212° F / 100° C
- Handle Style: Vertical/Silver (Removable)
- Valves: Duckbill (Buna-N)
- Diaphragm: Buna-N (Nitrile)
- Clevis/Button Assembly: Delrin Plastic
- Clamp Ring: Delrin Plastic
- Inlet Hose Connection: 1" Smooth
- Outlet Hose Connection: 1" Smooth
- Internal Spring: None
- Pre-Pak Accessories: Not selected
- Body & Ports: Delrin / Gray
- Clamp Ring Delrin, Epoxy-coated Aluminum, Epoxy-coated Aluminum with Stop Brackets
- Handle Aluminum: Horizontal/Silver, Horizontal/Black, Vertical (Removable)/Silver
- Valves: Flapper, Duckbill, Umbrella
- Diaphragm: Buna-N, Buna-N Double Sided, Neoprene, Viton, EPDM, Silicone
- Clevis/Button Assembly: Delrin, SS Washer + Aluminum Clevis, All Stainless Steel
- Internal Spring: None, Lightweight, Standard, Heavy-Duty (all stainless steel)
- Other Aluminum mounting standoffs, Thru-Deck Mounting Kit (for vertical handle only)
