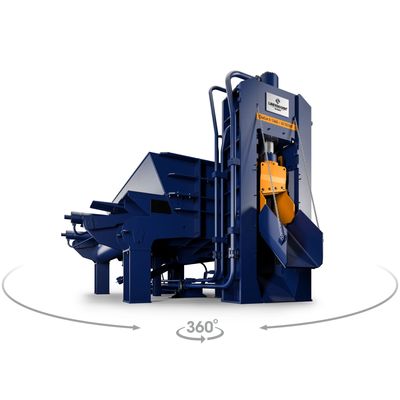

Lindemann - Model EtaCut II -Scrap Metal Shear
The scrap metal shear with highest capacity and availability. Enhanced operational reliability and reduced maintenance costs. The name LINDEMANN EtaCut II incorporates the Greek letter η (eta), the technical symbol for efficiency which illustrates the extremely high effectiveness and low lifecycle costs of the Eta product lines.
Most popular related searches
scrap metal shear
metal shear
scrap metal
scrap shear
wear plate
radio remote control
pump test
metal cutting shear
scrap metal cutting
metal cutting blade
The EtaCut II metal shear is the most powerful and durable generation of heavy scrap shears. It stands for efficiency and low lifecycle costs. Both are reflected in the highest throughput rates and fastest cycle times worldwide in relation to the installed drive power. In addition, its extraordinary reliability and low maintenance costs are inspirational: all wear-intensive areas are fitted with bolted wear plates that can be changed out quickly and easily.
-
800 – 1,600 t shearing force
-
340 – 480 t stamper force
-
800 – 1,500 mm blade width
-
8 – 10 m box length
-
340 – 500 t side compression force
-
270 – 545 t lid force
-
Throughput/hour up to 87 t
-
Options for specific requirements
ALWAYS A
CUT AHEAD
CUT AHEAD
All features of the LINDEMANN product line for maximum durability, performance, efficiency and maintainability
- 400 bar technology for less losses and reduced energy costs
- Shearing shock damping
- Single, easily accessible manifold to reduce maintenance
- Maximum production capacity per installed power in its class
- Components and connections designed for fatigue strength
- Blade slide with bending bar and support table for efficient and reliable cuts
- Hydraulic blade tensioning of upper and lower blades
- Bolted wear plates and wear ledges to optimize wear plate replacement
- Full information touch panel
- Radio remote control with display
- Material-specific full automatic modes for box and shear
- Automatic cylinder und pump tests
