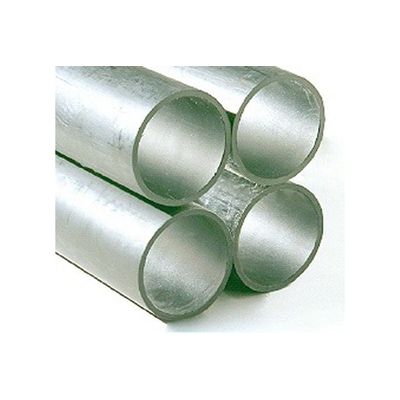

Maxtube DUOLINE - Model 10-PE -Lining System
DUOLINE 10-PE, is a lining system which utilizes a heavy wall high density polyethylene liner and is targeted for use in specific applications for reduction of tubing corrosion in low temperature & low pressure environments. DUOLINE® 10-PE is especially suited for shallow water injection well tubing where corrosive water is injected and performs within a temperature range of -20°F + 160°F.
DUOLINE 10 BEATING THE HIGH COST OF CORROSION
DUOLINE® 10 is part of the unique Duoline process of inserting liner tubes into steel pipe and filling the annular space with a special cement applied with pressure. Ends are flared back so that both ends are flat and can be protected in the collar. Thus, the interior of the pipe is essentially inert to common acids and corrosive fluids.
DUOLINE® 10 also provides reliable joint protection. The lining is positioned on the pin and collar end of threaded pipe so that the collar is protected from corrosion when corrosion barrier rings are used. Smoothness is ensured by the fact that the interior of the liner is unaltered during the lining process, thereby retaining the ‘C’ factor of 150.
