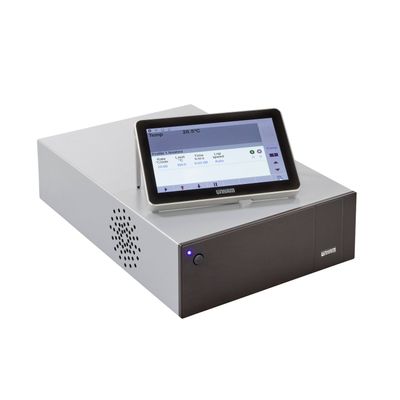

Linkam - Model T96 -Universal System Controller

SHARE

The Linkam T96 Universal System Controller is a versatile device engineered to regulate a wide range of experimental stages, including but not limited to, the PE100, PE120, LTS120, THMS, HFS, and others. The T96 Controller can be seamlessly integrated with the NEXUS or LINK software systems, facilitating control over heating, cooling, vacuum, and humidity parameters, with up to 100 programmable ramps. With a USB interface, it allows for PC connectivity, while the optional, standalone LinkPad touch screen controller offers an intuitive user interface for immediate input of experimental parameters. Additionally, the T96 stands out for its capability of implementing high-speed temperature ramps up to 200°C/min and a precise temperature measurement using a PT100 sensor with a resolution greater than 0.01°C. The device is designed for integration with Windows and Linux systems through its optional SDK, offering extensive compatibility with third-party applications.

Most popular related searches
precision temperature monitoring
temperature monitoring
high-temperature monitoring
temperature profiling
humidity parameter
FTIR
can separator

The T96 Controller is a universal controller supporting all standard Linkam stages.

The T96 can be controlled through NEXUS or LINK system control and image capture software which uses a USB interface, or the high resolution LinkPad, an ergonomic touch screen display, which enables the user to quickly enter experimental parameters for most stages and to run profiles (dependent on the connected stage).

More complex stages such as the MFS (Modular Force Stage), MDS Motorised System and the DSC require software control as they are not supported by the LinkPad.

A wide range of controls has been implemented for each line (ramp) of the temperature profile, including parameters such as vacuum, pressure, tensile speed and force.

OPTIONAL SOFTWARE CONTROL

Optional LINK or NEXUS software can be used to control all aspects of heating and cooling as well as vacuum and other environmental conditions including relative humidity (when used with the appropriate controller and interface).

Stages such as the MFS, MDS and DSC require this software control as, as stated above, they are not supported by the LinkPad.

OPTIONAL STAND-ALONE LINKPAD

The optional LinkPad high resolution touch screen controller provides complete stand-alone control. Up to 100 ramps can be programmed with separate control of parameters including temperature, vacuum and humidity.

Universal Voltage Controller

  • T96-P model supports Linkam PE100, PE120 and LTS120 families of Peltier stages.

  • T96-S model supports the Linkam THMS, HFS, LTS420, TS, BCS, FTIR, MFS, MDS, DSC, CSS, HS and CCR families of our stages.

High Speed Temperature Ramps

  • Temperature ramps of up to 200°C/min (dependent on stage attached).

High Temperature Resolution

  • Temperature measurement using a PT100 platinum sensor with better than 0.01°C resolution.

USB Interface

  • The standard USB interface allows the controller to be connected to a PC.

Optional SDK

  • The optional SDK provides a platform for the easy integration into 3rd party software applications. Windows and Linux versions are available.
