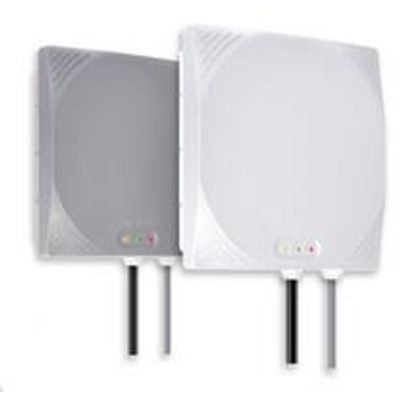

Linux - Model VI-83T/S -UHF RFID Integrated Reader
This device is a UHF RFID integrated reader. It is designed based on independent intellectual property rights and appearance patent. It features integrated RF reader antenna, small in size, light in weight, IP67, industrial control joint easy to deploy. It performs excellent UHF R/W function, adapt to global working frequency. It is equipped with LED indicator lights and buzzer for work status. It supply with multi-language SDK (C#, C++, JAVA) , easy for secondary development integration.
Most popular related searches
- Adopt ATMEL AT91SAM9260 CPU, ARM926EJS core processor, clocked at 200MHZ;
- 16MB SDRAM, FLASH storage, 128M*8bits NandFlash (K9F1G08U0B) can be replaced according to customer requirements;
- Operating system support, Linux 2.6.30;
- Standard interface RS232, RS485, TCP/IP; optional interface functions: Wiegand, CAN bus, WIFI, Bluetooth, 2G/3G/4G
- Low power consumption and low voltage design ideas ensure longterm safe and stable operation of the product without failure.
- Industrial grade switching power supply design, DC 9 ~ 24V wide voltage input;
- The shell is made of highstrength diecast aluminum alloy, which is durable and durable;
- The control board can be connected to Vanch RF module VM5F (Korean PR9200 RF chip) and VM61 (US Indy R2000 RF chip) to meet different needs.
- General input/output (GPIO) 4channel optically isolated input 4channel optically isolated output;
- UHF UHF reading distance is 3 to 5 meters, VM5F (Korean PR9200 RF chip);
