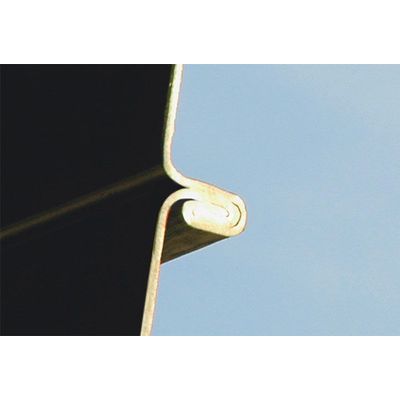

LIPP - Dual-Seam Conventional System
Conventional systems are often unsuitable for the optimum, safe storage of solid or liquid substances and their use can result in premature corrosion, leaks and problems with safety. Flexibility is another important factor. Tanks must be flexible in terms of size and substrate and optimally adaptable to the local conditions.
- Edgeless, smooth finish
- Maximum leak-tightness
- Automated, efficient production on site
- Low installation and investment costs
- Minimal installation space required
- High static and dynamic stability
- Available in stainless steel, VERINOX stainless steel or galvanised/black steel
- Substrate-flexible due to specific material selection
- Low maintenance costs
Diameter
continuously
variable from 3 to 50m
Height
continuously
variable from 2 to 35m
Volume
from 40 to
10,000m3
other sizes on enquiry
VERINOX stainless steel
Duplex material from a galvanised steel band on the outside and a stainless steel band, e.g. 1.4301 [304], 1.4571 [316Ti] or 1.4539 [904L], on the medium side.
Stainless steels
e.g. 1.4301 [304] or 1.4571 [316Ti]
Galvanised/black steels
further materials on request
Solid, liquid or gaseous media
e.g. sewage gas, landfill gas, biogas, sewage sludge, sugar beet, bulk goods, etc.
pH level
from 3 to 13, further information available on request
