LIPP - Universal Digester
With digester chamber volumes ranging from 200 m3 to 5.000 m3. The LIPP Universal digester which unlike the KomBio reactor does not have an integrated gas accumulator, is used for larger plants for industry and municipalities. The biogas accumulated is either directed into a KomBio reactor combined with the Universal digester or into a separate gas accumulator.
- Production of renewable energy and reduction of fossil CO2 emissions
- Low noise emissions
- Flexible substrate composition
- Customisable pumping and stirring technology
- High functional safety
- Effective insulation results in low heating requirement
- Quick construction thanks to on-site production
- Low investment costs
- Low-maintenance and durable
- Consistent quality worldwide
Volume
from 200 to 5.000 m3
larger sizes on request
Media
substrate-flexible
Operating pressure
from 0 to 5 mbar,
further on request
Exterior colour
freely selectable
according to RAL
Tank
VERINOX stainless steel
Duplex material from a
galvanised steel band
on the outside and a
stainless steel band,
e.g. 1.4571 [316Ti]
or 1.4539 [904L],
on the medium side.
Installation parts
Stainless steels, e.g.
1.4301 [304], 1.4571
[316Ti] or 1.4539 [904L]
There is a wide range of
peripheral accessories
available for the
technical equipment
of the tank:
- Roof insulation
- Pumping systems
- Flexible mixing technology
- Inspection glasses

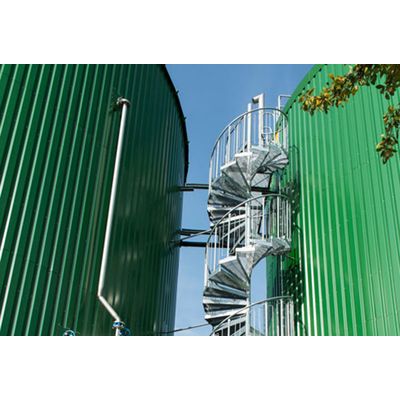

- Stairways, ladders, platforms, connection pieces, manholes, etc.
