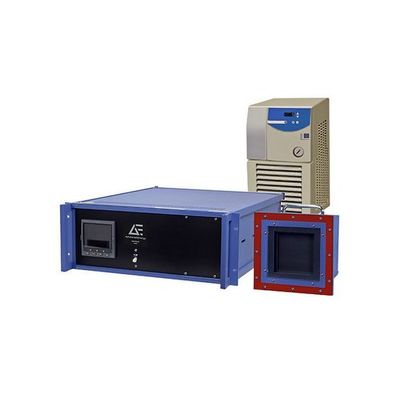

Advanced Energy - Model Mikron M345X6-LC -Liquid-Cooled, Low Temperature Blackbody Calibration Source with Large Surface Area, -40 to 100 °C
Advanced Energy’s Mikron Mikron M345X6-LC blackbody calibration source is a liquid-cooled, two-piece system comprised of a controller module and a separate enclosure with an aperture size of 152 x 152 mm (6 x 6 in) and a temperature range of -40 to 100°C. High effective emissivity. High accuracy and high resolution (0.01°C). Excellent stability, 0.02°C per 8 hours in still air environment. Warm-up time of 15 minutes (-40°C).
The Mikron® M345X6-LC blackbody source is liquid-cooled and heated by precision thermoelectric modules (Peltier method). It is available in absolute or differential configurations.
M345X6-LC calibration sources satisfy the exacting parameters of infrared focal plane array detectors, thermal imaging, and forward-looking infrared (FLIR) systems testing in static and moving scene applications. They combine fast slew rates, high emissivity, and unchallenged stability and uniformity.
- Calibrate and verify the output signals of pyrometers, thermal imagers, etc.
- Obtain lower temperature calibrations using liquid cooling
- Utilize large aperture sizes
- Control emitter source temperature with a precision digital PID controller
- Satisfy the exacting parameters of infrared focal plane array detectors, thermal imaging and forward looking infrared (FLIR) systems testing
- High emissivity with thermometric calibration
- Uniform temperature distribution with precision heating elements
- Manufactured and tested to meet rigid quality control standards
- Furnished with a certificate of calibration traceable to NIST
- RS232 serial communication
