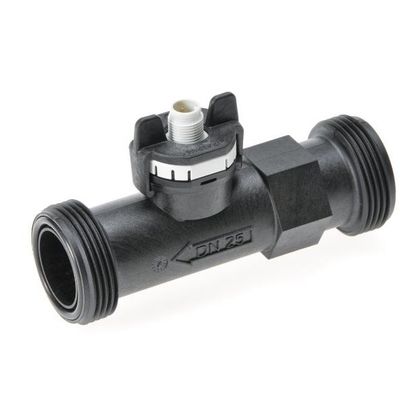

Mass Flow Online - Model Liqui-View - LVB-20-P (5.0 .. 85 l/min) -Liquid Flow Meter

Model: Min: Max

• LVB-20-P: 5.0 l/min: 85 l/min

• Measurement/control system:
• Flow range: 5.0..85l/min
• Accuracy:
• at >=50%FS <2%RD
• at<50%FS<l%FS
• Operating pressure:
• (for lifetime) 12 bar(a) at +40°C
• (for lifetime) 6 bar(a) at +100°C
• (for 600 hours) 4 bar(a) at +125°C
• (for 2 hours) 4 bar{a) at +140°C
• Medium: Water and water like liquids.
• (cooling, well, waste, pure, drinking, heating and tap water)
• This product is NOT compatible with flammable, corrosive or toxic liquids.
• Medium Temperature:
• Rangeability: Up to 1:20
• Response time (sensor): Signal delay: < 100 ms
• Response time: < 5 ms
• Operating temperature: Ambient:-! 5...+85°C, Storage: -30... +85°C

Mechanical parts:

• Material (wetted parts): Body: PA6T/6I (40% GF) Sensor paddle: ETFE Seals: EPDM
• Test pressure: 18bar(a)at+40°C
• Process connections: G1/2
• Weight: 0.10 kg
• Ingress protection: IP65

Electrical properties:

• Power supply: 4.75.33Vdc
• Load: <1mA
• Max. power consumption: <2mA
• Electrical protection measures: Short circuit, reverse voltage and external voltage protected within the admissible supply voltage
• Output: Frequency output (unfiltered)
• Drinking water approval: KTW / W270 / WRAS / ACS
• EMC: EN 61326-2-3
• Electrical connection: M12X1
