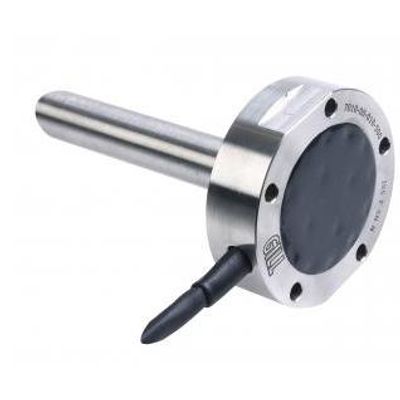

Gill - Model 7010 -Liquid Level Sensor
The Liquid Level Sensor is available in lengths up to 2m long and is designed for environments where monitoring of a variety of liquid types is required. The sensor uses solid-state capacitive technology to sense the level of the liquid, with no moving parts, floats or other mechanical linkages to provide excellent long term reliability.
It features two output options, analogue voltage or current to suit a variety of applications.
Built from 316 stainless steel, the level sensor will provide corrosion resistance in harsh environments. The sensor features SAE 5-Bolt mounting with either 1.125” UNF or 1.25” BSP thread. A flange gasket and O-ring seal are supplied with each unit.
Gill Sensors & Controls quality control ensures that every sensor is factory calibrated with temperature compensation to provide market leading accuracy of liquid level measurement.
Output:
Voltage 0.25-4.75V (max range 10V)
Current 4-20mA
Accuracy:
+/-2% FSD @20°C
Resolution:
10 bit
Supply Voltage:
Voltage +5 to +32V DC
4-20mA +9 to +32V DC
Supply Current:
<15mA
Operating Temperature:
-40°C to +125°C
Ingress Protection:
IP66, IP68
Mounting:
SAE 5-bolt, 1.125" UNF or 1.25" BSP
Probe Length:
100mm to 2000mm (in standard increments)
